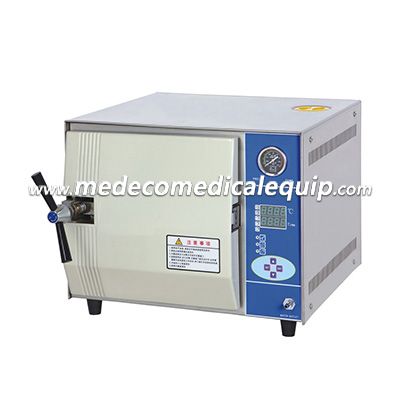

This product is a mini table type pulse vacuum sterilizer with rapid cooling system. It is safe and auto-controlled by computer. Its sterilizering
temperature range is 105 to134℃, and timer range is 1 to 99minutes.
CHARACTERISTICS:
1. Sterilizing process: Once get in0.6Ldistilled watered, it can continue sterilizing 4～5 times. It has the advantage of rapid circle, easily operation, computer control, needn’t watch for, convenient using.
2.Setting ability: sterilization temperature range is 105～134℃, timer range is 1～99min.
3. Max. temperature: sterilizing temperature is134℃which is suitable for 4-6 min. rapid sterilization.
4. Equipped with interior circulate system. Don’t discharge vapor to outside.
5. Sterilizing plate with meshes and cover. After sterilization, it can be closed for using to prevent the second times pollution of sterilize red goods.
6. Equipped with over-temperature and over-pressure protection advice
7. Equipped with advice that can discharge cold air automatically from disinfection chamber in order to ensure sterilization completely.
8. The door of disinfection chamber equipped with shell to protect operators.
9. The sterilizers are made of stainless steel and wear well.
10．With drying function.
TECHNICAL DATA:
| MODEL TECHNICAL DATA | YXQ.DY.250B20/25 |
| Sterilizing chamber volume: | 20L ( Φ250×420mm)25L ( Φ250×520mm) |
| Maximum working pressure | 0.22 MPa |
| Maximum working temperature | 134℃ |
| Adjustment of temperature: | 105~134 ℃ |
| Timer | 1-99 min |
| Chamber temperature equal | ≤ ±1 ℃ |
| Source power | 1.5KW/AC 220V50Hz |
| Sterilizing plate | 340×200×30 mm (3 piece)400×200×30 mm (3 piece) |
| Dimension | 480×480×380mm580×480×380mm |
| package dimension | 720×580×500mm800×580×500mm |
| N/G. W | 40 /43 Kg45 / 50 Kg |
