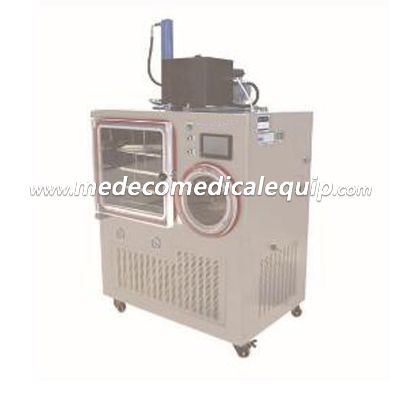

Pilot Freeze Dryer (Square Cabinet Type) ME-FD20S
Features：
1. Pre-freezing and drying are in same place.
2. With cascade refrigeration technology.
3. Silicon oil is intermediate medium in the shelves for heating to ensure drying material uniformity.
4. Shelf temperature is adjustable and easy to control.
5. Tray is easy to operate and clean.
6. 7 inch LCD touch screen. Adopt PID intelligent control system.
7. With historical data inquiry function, can store history data for one month.
8. Equipped with USB interface on control panel. It can copy the data and history data directly without additional software.
9. Ice condenser and operation panel are made by stainless steel, corrosion-resistant and easy to clean.
10. Front door is with high transparent colorless organic glass, the test process can be easily observed.

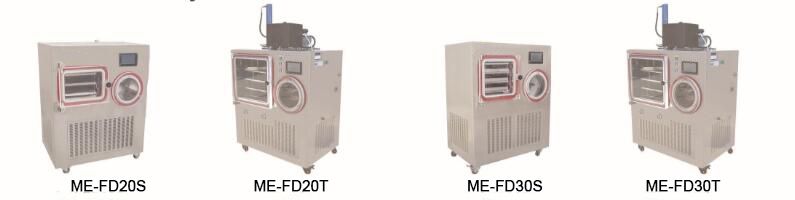

| Model | ME-FD20S(Standard) | ME-FD20T (Stoppering) | ME-FD30S (Standard) | ME-FD30T (Stoppering) | ||||
| Freeze Drying Area | 0.24 m2 | 0.3 m2 | ||||||
| Shelf Temperature | -50℃～+70℃ | |||||||
| Cold Trap Temperature | -80℃ | |||||||
| Vacuum Degree | ＜10 Pa | |||||||
| Max Water Capture Capacity | 3.6Kg | 4.5Kg | ||||||
| Cold Trap Volume | 13.5L | |||||||
| Cold Trap Size (Diameter*H) | Φ240*300mm | |||||||
| Drying Chamber Size (W*D*H) | 470*485*420mm | |||||||
| Shelf & Tray Size (W*D*H) | Shelf:305*405*17mmTray: 300*400*20mm | |||||||
| Qty. Of Shelf & Tray | Shelf: 2+1,Tray: 2 | Shelf: 3+1,Tray: 3 | ||||||
| Sample Loading Capacity (Liquid) | 2L | 3L | ||||||
| Height Between Trays | 145mm | 90mm | ||||||
| Tray Temperature Difference | ±1℃ | |||||||
| Refrigerant | R404A + R23 | |||||||
| Condenser Cooling Mode | Air cooling | |||||||
| Defrost Mode | Electric defrosting | |||||||
| Stoppering Mode | / | Hydraulic | / | Hydraulic | ||||
| Total Qty. Of Vial | Φ20mm | 468 | 702 | |||||
| Φ18mm | 864 | 1296 | ||||||
| Φ12mm | 1584 | 2376 | ||||||
| Vacuum Pump | 6L/S(22m3/h) | |||||||
| Power Supply | AC220V/50Hz/60Hz(single phase)AC380V/50Hz/60Hz(three phase)AC220V/50Hz/60Hz(three-hase) | |||||||
| Electric Defrosting Consumption | 400W | |||||||
| Silicone Oil Heating Rods Consumption | 400W | |||||||
| Hydraulic Pressure Station Consumption | / | 1.5KW | / | 1.5KW | ||||
| Total Consumption | 3KW | 4.5KW | 3KW | 4.5KW | ||||
| Main Body Weight | 340kg | 350kg | ||||||
| External Size (W*D*H) | 1200*750*1250/1600mm | |||||||
| Packing Size (W*D*H) And Gross Weight | Main Body | 1200*870*1500mm (310kg) | 1070*880*1800mm (360kg) | 1300*880*1500mm (320kg) | 1300*880*1850mm (400kg) | |||
| Vacuum Pump | 600*210*410mm (40kg) | 715*280*315mm (65kg) | ||||||

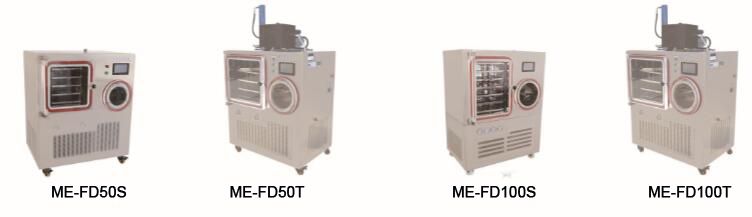

| Model | ME-FD50S (Standard) | ME-FD50T (Stoppering) | ME-FD100S (Standard) | ME-FD100T (Stoppering) | ||
| Freeze Drying Area | 0.5 m2 | 1 m2 | ||||
| Shelf Temperature | -50℃～+70℃ | |||||
| Cold Trap Temperature | -80℃ | |||||
| Vacuum Degree | ＜10 Pa | |||||
| Max Water Capture Capacity | 7.5Kg | 15Kg | ||||
| Cold Trap Volume | 18L | 35L | ||||
| Cold Trap Size (Diameter*H) | Φ255*350mm | Φ300*500mm | ||||
| Drying Chamber Size (W*D*H) | 470*548*550mm | 640*685*550mm | ||||
| Shelf & Tray Size (W*D*H) | Shelf:305*455*17mmTray: 300*450*20mm | Shelf:550*480*17mmTray: 475*272*25mm | ||||
| Qty. Of Shelf & Tray | Shelf: 4+1,Tray: 4 Shelf: 3+1,Tray: 3 | Shelf: 6+1,Tray: 6 Shelf: 4+1,Tray: 4 | ||||
| Sample Loading Capacity (Liquid) | 5L | 10L | ||||
| Height Between Trays | 90mm | |||||
| Tray Temperature Difference | ±1℃ | |||||
| Refrigerant | R404A + R23 | |||||
| Condenser Cooling Mode | Air cooling | |||||
| Defrost Mode | Electric defrosting | |||||
| Stoppering Mode | / | Hydraulic | / | Hydraulic | ||
| Total Qty. Of Vial | Φ20mm | 1040 | 2016 | |||
| Φ18mm | 1944 | 3944 | ||||
| Φ12mm | 3456 | 7020 | ||||
| Vacuum Pump | 8L/S(29m3/h) | 15L/S(54m3/h) | ||||
| Power Supply | AC220V/50Hz/60Hz(single phase)AC380V/50Hz/60Hz(three phase)AC220V/50Hz/60Hz(three-hase) | AC380V/50Hz/60Hz(three phase)AC220V/50Hz/60Hz(three phase) | ||||
| Electric Defrosting Consumption | 500W | 600W | ||||
| Silicone Oil Heating Rods Consumption | 800W | 1600W | ||||
| Hydraulic Pressure Station Consumption | / | 1.5KW | / | 1.5KW | ||
| Total Consumption | 7KW | 8.5KW | 8.5KW | 10KW | ||
| Main Body Weight | 470kg | 730kg | ||||
| External Size (W*D*H) | 1200*850*1500/1850mm | 1500*1000*1600/1950mm | ||||
| Packing Size (W*D*H) And Gross Weight | Main Body | 1250*900*1560mm (472kg) | 1250*900*1880mm (520kg) | 1700*1120*1800mm (650kg) | 1700*1120*1960mm (750kg) | |
| Vacuum Pump | 715*280*315mm (65kg) | 715*280*315mm (85kg) | ||||
