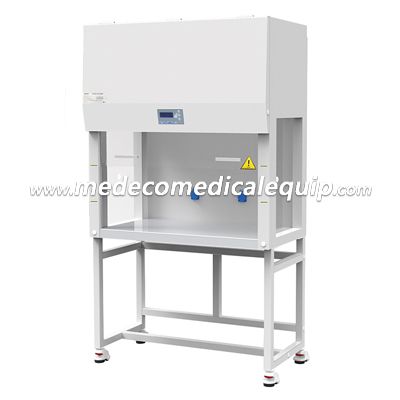

Vertical Laminar Flow Cabinet BBD-SDC(Customized)

Vertical Laminar Flow Cabinet BBD-SDC(Customized)

FEATURES:

1.Vertical laminar flow,single-sided operation;

2.The shell is cold-rolled steel plate with epoxy resin coating,featuring good looks and stability;

3.Equipped with pre-filter,which can preliminarily filter large particulate matter,thus improving the service life of

HEPA filter;

4.Work table is made of SUS304 material,beautiful and corrosion resistance;

5.The front window is made of 6mm thick tempered glass;

6.The control panel uses push-button switches.The keys consist of the fan key,lighting key,ultraviolet key,power

key,socket key,air volume reduction key,and air volume increase key,making it easy to operate.

7.LCD screen,real-time display of running status (air velocity,timer,UV lamp time,HEPA filter running time);

8.The fan has 8-speed adjustment to adapt to different types of experiments;

9.With ultraviolet lamp,fan appointment timing function;

10.Unit conversion function,which switches units between PA and m/s;

11.Perfect alarm system:

(1)Ultra-high filter pressure alarm

(2)Filter failure replacement alarm

(3)Front window opening safe height alarm

(4)Low wind speed alarm

12.Interlocking function:UV lamp and front window;UV lamp and fan,fluorescent lamp;fan and front window.

TECHNICAL PARAMETERS:
