Vertical Laminar Flow Cabinet-Double Sides Type MEBS-DSC

Share
documents & resoures

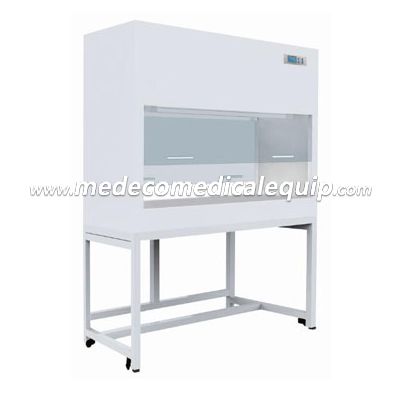

Vertical Laminar Flow Cabinet-Double Sides Type MEBS-DSC


Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

Vertical Laminar Flow Cabinet-Double Sides Type MEBS-DSC                                    Vertical Laminar Flow Cabinet-Double Sides Type MEBS-DSC

LED Display                                                                         UV Lamp
Microprocessor control system, LED display.                      Emission of 253.7 nanometers for most efficient

                                                                                             decontamination.

Vertical Laminar Flow Cabinet-Double Sides Type MEBS-DSC

Double Sides
Double sides work bench, operators can sit face to face.

TECHNICAL PARAMETERS

Model MEBS-DSC MEBS-SSC
External Size (W*D*H) 1040*660*1770mm 1440*660*1770mm
Internal Size (W*D*H) 940*560*545mm   1340*560*545mm
Work Surface Height 750mm
Display LED Display
Airflow Velocity Average of 0.3~0.5m/s
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel
Pre-filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3um
Noise <60dB
Front Window Manual, 5mm toughened glass, anti-UV
Max Opening 310mm 310mm
UV Lamp18W*1    30W*1
Emission of 253.7 nanometers
LED Lamp 12W*116W*1
Consumption 350W 600W
Caster Universal caster with leveling feet
Power Supply AC 220V±10%, 50/60 Hz; 110V±10%, 60 HZ
Standard Accessory LED lamp, UV lamp*2, Base stand
Optional AccessoryElectric height adjustable base stand
Gross Weight 150kg186kg
Package Size (W*D*H) 1190*890*1340mm 1590*890*1340mm
