Vertical Laminar Flow Cabinet MEBS-V680


Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air

through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.

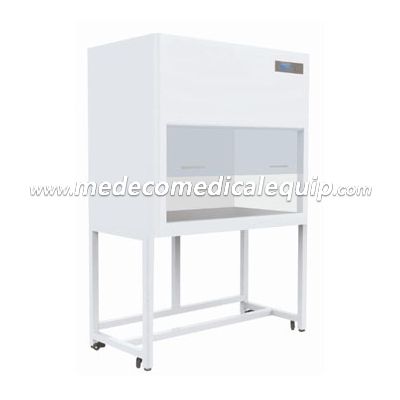

Vertical Laminar Flow Cabinet MEBS-V680

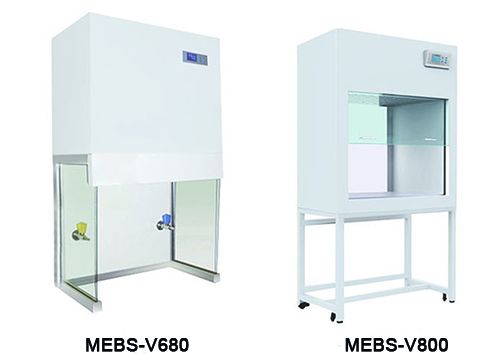

Model MEBS-V680MEBS-V800 MEBS-DDC MEBS-SDC
 External Size(W*D*H), mm680*410*1160802*650*1550 1040*615*1770 1440*615*1770
 Internal Size (W*D*H), mm630*375*615800*530*540 940*540*545 1340*540*545
 Work Surface Height /660mm 750mm 750mm
 Display LED Display
 Airflow Velocity Average of 0.3~0.5m/s, air speed adjustable.
 Material Main Body: Cold-rolled steel with anti-bacteria powder coating
 Work Table: 304 stainless steel
 Pre-filter Polyester fiber, washable
 HEPA Filter 99.999% efficiency at 0.3um
 Noise <60dB
 Front Window /Manual,5mm toughened glass, anti-UV
 Max Opening /490mm310mm310mm
Illuminating LampFluorescent Lamp14W*1LED Lamp8W*1LED Lamp12W*1LED Lamp16W*1
UV Lamp15W*1 20W*118W*130W*1
 Emission of 253.7 nanometers
 Consumption 160W 350W 350W600W
Standard AccessoryFluorescent lamp, UV lamp*2 Water & gas tapLED LampUV lamp*2Base standLED LampUV lamp*2Base standLED LampUV lamp*2Base stand
Optional Accessory/Electric height adjustable bass stand
 Caster/ Universal wheel with leveling feet
 Power Supply AC 220V±10%, 50/60 Hz; 110V±10%, 60HZ
 Gross Weight 50kg 116kg 131kg174kg
 Package Size (W*D*H)mm 840*560*1380 960*800*1800 1200*850*13601600*850*1360

Standard Accessory

Fluorescent lamp 1pc

UV lamp*2( for all models )

Water & gas tap (for model MEBS-V680)

Base stand (except model MEBS-V680)
