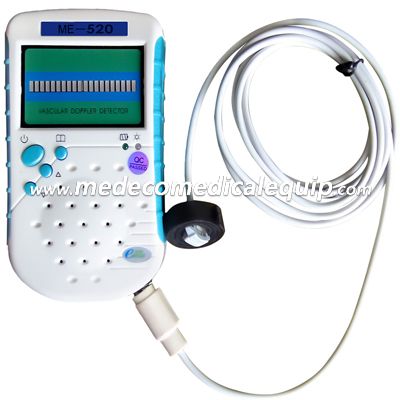

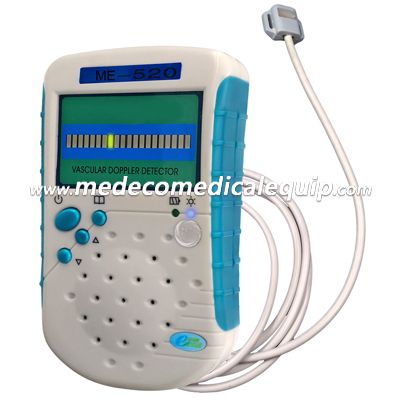

Ultrasonic Vascular Doppler Detector ME-520 1

Ultrasonic Vascular Doppler Detector ME-520+

Features:

It is mainly used to detect the blood flow of human or animal arteries and capillaries. Applicable to orthopaedics, surgery, Plastic surgery, burn department, pet hospital, etc.

Product parameters:

Detect the blood stream status of arterial/venous by 8.0MHz; detect the blood flow average

velocity, detect the result of finger/toes and part of body's vein anatomies operation.Bar

LED can detect the blood stram status.Ultrasonic probe:8.0MHz±10%

It can be used to listen the temporo-mandibular joints (They become noisy when they start

to brake because of the bite problems), assist doctor to check the conditions of the joints

and predict the result of treatment.

Battery: 7.4V/900mAh rechargeable Lithium

Detect peak and average blood speed

Detect blood flow of peripheral vessel

Detect subsection systolic pressure

Detect phlebostenosis, vein occlusions

Detect Systolic pressure of toes and fingers

Detect blood speed during recovery

Detect the pulse rate and show PR simultaneously

Specification:

Input voltage: DC 9V 1000mA

Doppler frequency: 100--7000Hz

Display: LED 20bit

Working temperature: 10-40℃

Humidity: ≤80%

Atmospheric pressure: 86--106kPa

Package:

Single Unit Dimension: 26cm x 25cm x 12cm Gross Weight: 2kg

6 pcs/carton Dimension: 49cm x 26cm x 33cm Gross Weight: 8.5kg
