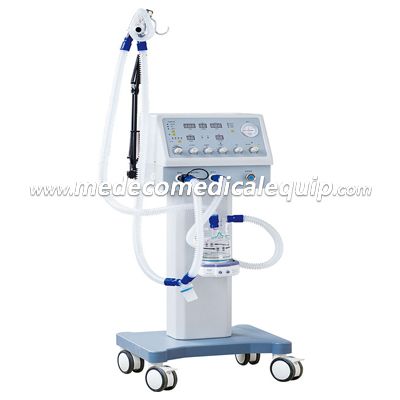

Medical Trolley Ventilator ME-500

Medical Trolley Ventilator ME-500

Specifications

Pneumatic power control, microcomputer control

Operation control panel with clear LED display, easy to operate

High quality humidifier

High-quality pipeline, accessories, parts

Ventilator host:

Scope: adults, children

Drive: pneumatic power control

knob operation and touch key

Work: time to switch

Breathing Mode:IPPV, SIPPV, IMV, SIMV, PEEP, Manu, Sigh and so on;

Tidal Volume Adjustment:50~1200ml

Respiratory Rate:6~60/m

I/E ratio: 1: 1.5, 1:2.0, 1:2.5, 1:3

(Ptr) Range:-0.4~1.0kPa

The upper pressure limit: 1 ~ 6KPa

PEEP: 0.1 ~ 1KPa

Oxygen Concentration:<45%

Transfer Time from Controlled to Assistant Respiration:6s

Air Flow Adjustment:1~12times /m

Sigh Volume:150% of tidal volume

Ventilation Capacity per Minute:≥18L

Maximum Safe Pressure:≤6.0kPa

Air supply range:280~600kPa

Monitoring parameters: tidal volume, minute ventilation, the total frequency, peak airway pressure, oxygen concentration, self-triggering

Alarm parameters: the lack of oxygen supply, airway pressure upper limit airway pressure limit, power, sustained pressure, asphyxia, low tidal volume, oxygen concentration, gas missing

Oxygen Consumption:≤1.5mPa change in pressure after 1-hour operation of oxygen cylinder of 12250kPa/40L.

Power supply: AC220V, 50Hz

Humidifier:

Thermostat regulated

Automatic over-temperature power-off protection
