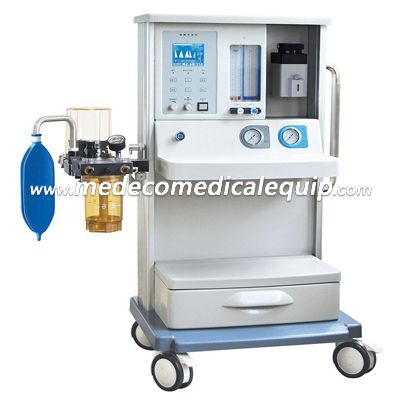

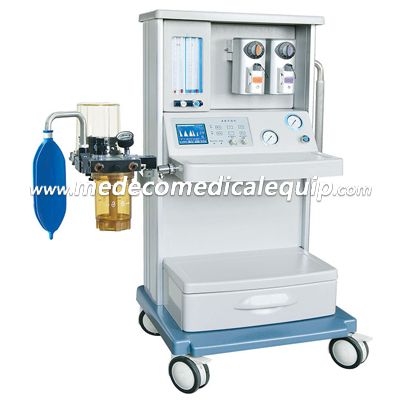

Anesthesia machine ME-01BII With two vaporizers

Anesthesia machine ME-01BII With two vaporizers

Specifications:

Pneumatically drivenelectronicallycontrolled system

Built-in ventilator, 5.4” LCD display

With 1 patient circuit for adult (Option:patient circuit for children).

4-tube flowmeters, O2 & N2O ;0.1 L/Min~ 10 L/Min;

Oxygen Flush: 25~75 L/Min;

Respiration Mode: IPPV, SIPPV, IMV, SIMV,PEEP, Manu, Sigh

Tidal Volume: 0~1500 mL;

I:E: 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0,1:2.5, 1:3, 1:4;

Respiration Frequency: 1~99bpm;

PEEP: 1~10 hPa;

Ptr: -10~10 hPa;

CO2 absorber capacity: 1 kg

Lung compliance: ≤ 30 mL/kPa;

IMV frequency: 1~12bpmInspiratory Plateau: 0~1S;

Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceedlimitation, no tidal volume output, apnea,AC power malfunction, battery lowpower

Loop part:

Integrated design, integrated breathingcircuit

Evaporator:

High-precision single evaporatorconfiguration, enflurane or isoflurane or Sevflurane or Haloflurane

Concentration adjustment range: 0.5 ~ 5%VOL

Evaporator flow, pressure, andautomatictemperature compensation function

Self-locking feature

Configuration:

Vaporizer: one vaporizer,Enflurane/Isoflurane/Sevoflurane(Option: Halothane)

Anesthesia gas concentration range:0.5~5%
