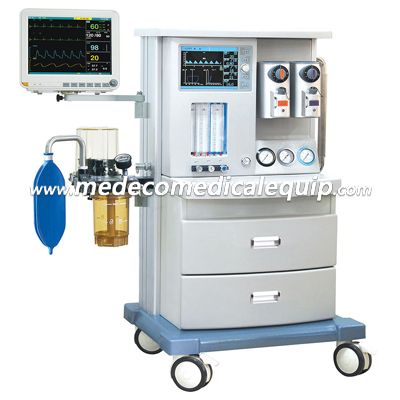

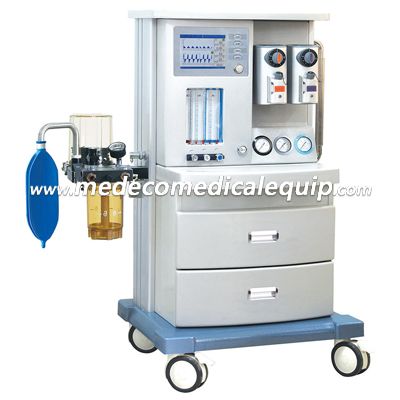

Anesthesia machine ME-850-10

Anesthesia machine ME-850-10

pecifications:

Anesthesia ventilator

Pneumatically driven electronically controlled system

Built-in ventilator, 10.4” LCD display

With 1 patient circuit for adult (Optional:patient circuit for children)

5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;

Two vaporizers,Enflurane/Isoflurane/Sevoflurane; (Optional: Halothane)

 Oxygen Flush: 25~75 L/Min;

 Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh

 Tidal Volume: 0~1500 mL;

 I:E: 8:1~1:10

 Respiration Frequency: 1~99bpm;

 PEEP: 1~10 hPa;

 Ptr: -10~10 hPa;

 CO2 absorber capacity: 1 kg

 Lung compliance: ≤ 30mL/kPa;

 IMV frequency: 1~12bpm

 Inspiratory Plateau: 0~1S;

 O2 Concentration: 21%~100%

 Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery low power

Patient Monitor

12.1''TFT large screen of high resolution

ECG: 5-lead, gain:×2.5mm/mV ×5.0mm/mV×10mm/mV ×20mm/mV, analysis of ST segment and abnormal of heart rate(anti-defibrillate, anti-HF    electrotome)

Heart Rate: 20~250bpm

RESP: Impedance, range: 0~100bpm

 SpO2: 0%~100%

 Pulse Rate: 20~250bpm

NIBP: SBP, DBP, MBP, 10~270mmHg interval ofautomatic measurement 1~90min adjustable

TEMP: 0~50ºC

Alarm: Audio and visual alarm

Tendency record 96 hours

Loop part:

Integrated design, integrated breathingcircuit

Evaporator:

High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane

Concentration adjustment range: 0.5 ~ 5%VOL

Evaporator flow, pressure, and automatictemperature compensation function

Self-locking feature

Configuration:

 Vaporizer: Two vaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)

 Anesthesia gas concentration range: 0.5~5%
