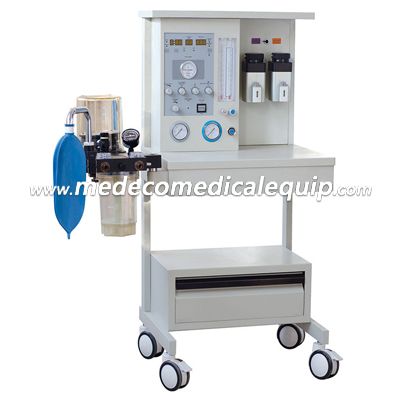

Anesthesia machine ME01-II with two vaporizers

Anesthesia machine ME01-II with two vaporizers

Specifications:

Pneumatically drivenelectronicallycontrolled system

Built-in ventilator, LED display screen

With 1 patient circuit for adult (Option:patient circuit for children).

2-tube flowmeters, O2 & N2O;0.1 L/Min ~10 L/Min;

Double vaporizer, Enflurane/Isoflurane/Sevoflurane;(Option: Halothane)

Oxygen Flush: 25~75 L/Min;

Respiration Mode:  IPPV, SIPPV,Manu

Tidal Volume: 50~1500 mL;

I:E: 1:1.5; 1:2.0; 1:2.5; 1:3

Respiration Frequency:  4~40 bpm

Ptr: -10~10 hPa;

CO2 absorber capacity: 1.5 kg

Alarm parameter: upper/lower limit ofventilation volume, upper /lower limit ofairway pressure, tidal volume exceedlimitation, no tidal volume output, apnea,AC power malfunction, battery lowpower

Loop part:

Integrated design, integrated breathing circuits

Evaporator:

High-precision single evaporator configuration, enflurane or isoflurane or Sevflurane or Haloflurane

Concentration adjustment range: 0.5 ~ 5%VOL

Evaporator flow, pressure, andautomatictemperature compensation function

Self-locking feature

Configuration:

Vaporizer: Two vaporizers,Enflurane/Isoflurane/Sevoflurane(Option: Halothane)

Anesthesia gas concentration range:0.5~5%
