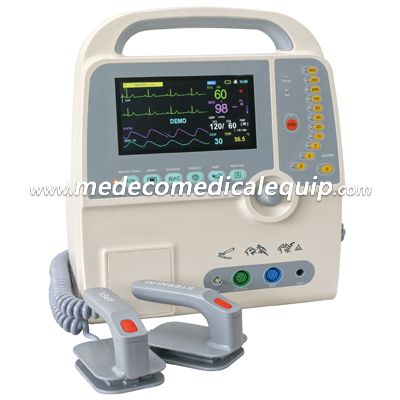

Biphaisc Defibrillator ME-8000C

Biphaisc Defibrillator ME-8000C

Features：

Manual, Synchronized, Asynchronized

Technical specifications：

Energy accuracy     ∠+1%

Energy selection    0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50)

Charging time       Maximum 10 seconds to 360 Joules

Standard Adult/Pediatric Paddles  Reusable external adult paddles (pediatric paddles integrated)

Power requirements.

(a) AC Power supply                  100V~240V,50Hz/60 Hz

(b) Vehicle Voltage(Option)          DC 12V

Internal Battery Backup

(1)Battery type          Rechargeable lead-acid battery  (12V 2.0Ah  X2)

(2)Charging time         Time-Minimum of 4 hours for full charging

(3)Battery charging      During AC Power Supply operation of the device.

(4)Charging /Low Battery Indication      Red LED

(5)Battery Capacity      100% of the battery will provide 120-min monitoring; and 35 discharges at 360 joules.

Display

-LCD Dimensions        7-inch

-Type                  High resolution true-color graphic

-Resolution            480X234

ECG

ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1～V6
S-T segment analysis: -2.0～2.0mv
Arrhythmia analysis: yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation

Respiration

Measurement method: Thoracic impedance

NIBP

Working mode: Manual/Automatic/stat(5 minutes)
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal

Temperature

Measurement range 20~45℃

Resolution 0.1℃

Pulse Oximetry(spO2)

Display ：spo2 value, pulse histogram, waveform, Pulse

Range： 0~99%for adult, pediatric and neonatal patients

Probe ：standard adult finger clip

optional pediatric Y-type clip and neonatal wrap

Pulse range
Pulse range: 0-255bpm

Standard parameter & configuration

ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR

Optional parameter

Recorder, Li-ion battery (11.1V 4Ah  X2)
