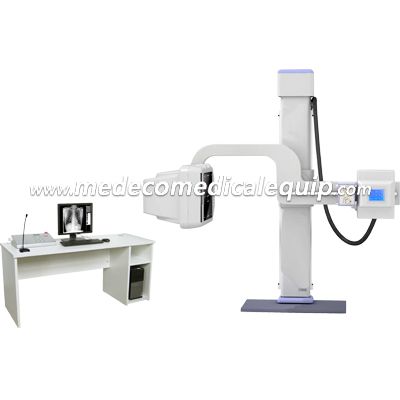

High Frequency Digital Radiography System MEX8200

Application:

This machine is applied to take radiography on every part of human body, such as head, limbs, chest, limbus and abdomen and etc.

Specification:

	Item	Parameter
High Frequency X-ray Generator	Power Output Inverter FrequencyTube VoltageTube Current mAs	26KW60kHz40-130kV 200mA0.4~360mAs
X-ray Tube	Dual-focusThermal capacity Speed of rotary anode	Small focus: 0.6 Large focus: 1.3900kJ (1200 KHU)3000rpm
Digital Detector	Type of detectorField of viewInch PixelSpatial resolutionPixel sizeGrayscale outputImaging time	CCD17”17”3K3K≥3.6LP/mm140um14bit15S
Digital workstation	Image acquisition system : Image processing module: Image storage and transmission:	Photo processing software, X-ray synchro Control software, motion control software tissue equilibrium, W/L adjustment, Gamma correction, interest district, reversed phase, noise reduction, smooth, sharpen, pseudo color, Edge extraction, shadow compensation, filter neuclear, single window, dual-window, four windows, movement, right rotated 90°,left rotated 90°,level mirror image, vertical mirror image, magnifying glass, image zooming, reset, layer information, label character, drawing label, length measurement, angle measurement, rectangular length, rectangular area, elliptic length, elliptic area Dicom transmissionDicom Worksite SCU Film printingMass storage(hard disk, compact disk)
Mechanical structure performance	Motorized vertical travelAnode to Screen rangeRotation range	450mm-1700mm(motorized control)1000mm-1800mm(motorized control)-40°~+130°(motorized control)
Others	Supply power	380V 50Hz(220V 50HZ is also available)
