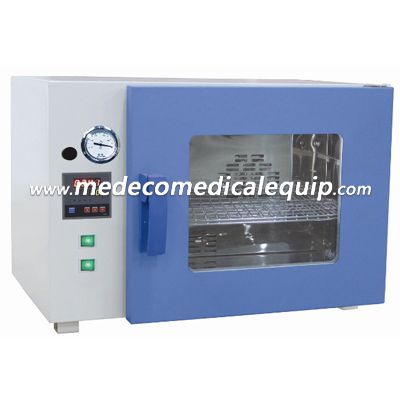

Vacuum Drying Oven ME-30V
Features:
* PID microprocessor temperature control with LED display.
* Polished stainless steelinnerchamber.
* Vacuum degree is automatically controlled (for BOV-90V/BOV-215V/ BOV-90VL/ BOV-215VL)
* Siliconrubber sealring ensuresthehighvacuumdegreein the chamber.
* Tempered double-layerglass door ensures the operation safety.
* The vacuum is controlled by microprocessor controller with digital display.(for BOV-90VL/BOV-215VL)
* The working program can be cycled for 99 times.(for BOV-90VL/BOV-215VL)
* The vacuum pump is standard accessory(for BOV-90V/BOV-215V/ BOV-90VL/BOV-215VL)
* Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1Mpa when filling in).
(for BOV-90VL/BOV-215VL)

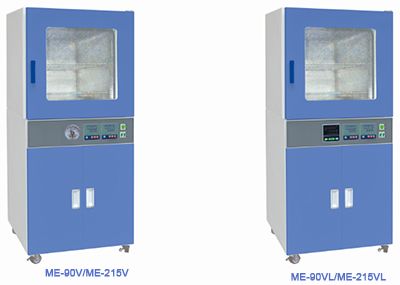

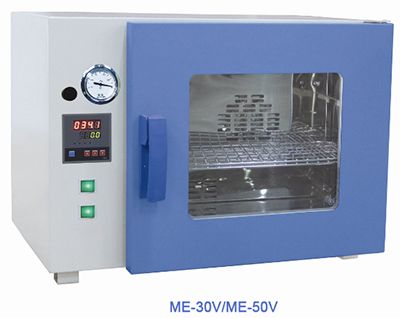

Model | ME-30V | ME-50V | ME-90V | ME-215V | ME-90VL | ME-215VL | |
Capacity | 25L | 50L | 90L | 215L | 90 L | 215 L | |
Temp.Range | 50~200°C | 50~250°C | 50~200°C | ||||
Temp. Fluctuation | ±1°C | ||||||
Vacuum Degree | <133 Pa | ||||||
Vacuum Control | / | Automatically; Include one vacuum meter | Automatically; Microprocessor controller withdigital display | ||||
Shelves No. | 1 pc | 2pcs | 2 pcs | 3 pcs | 2 pcs | 3 pcs | |
Power Consumption | 500W | 1400W | 1600W | 2200W | 1600W | 2200W | |
Power Supply | AC110V/220V±10%,50/60Hz | AC220V±10%,50/60Hz | AC110V/220V±10%,50/60Hz | AC220V±10%,50/60Hz | |||
Internal Size(W*D*H)mm | 300*300*280 | 420*350*370 | 450*450*450 | 560*600*640 | 450*450*450 | 560*600*640 | |
External Size(W*D*H)mm | 580*570*450 | 710*590*530 | 660*610*1400 | 760*720*1670 | 660*610*1400 | 760*720*1670 | |
Packing Size(W*D*H)mm | 740*620*640 | 860*700*720 | 760*780*1600 | 900*850*1930 | 760*780*1600 | 900*850*1930 | |
Gross Weight( kg ) | 50 | 106 | 155 | 195 | 155 | 195 |
