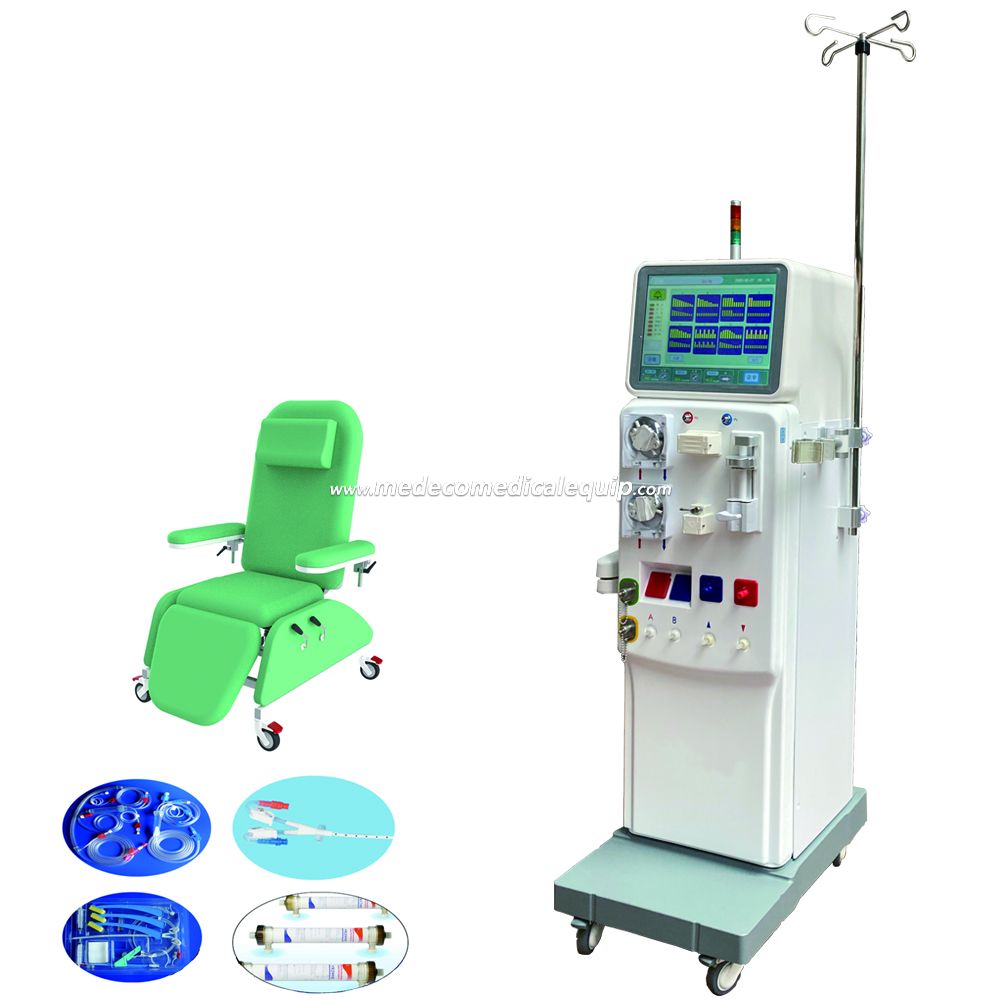

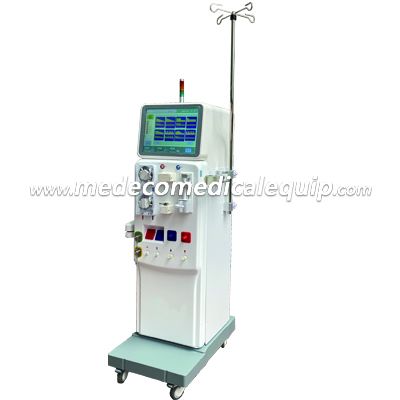

Medical Dialysis Center HDF Therapy Hemodialysis Met6008s Kidney Therapy

Product Description

Medical Dialysis center  HDF  therapy Hemodialysis MET6008S kidney therapy


Intelligent operation system; Easy operation with visual and audio alarms; Multi-purpose

service/maintenance interface; Profiling: sodium concentration and UF curve;

Main performance of this device:

1. On-line HDF

2. Self-checking function;

3. Carbonate dialysis;

4. Double needle dialysis;

5. Liquid level detector;

6. Bubble detector;

7. Blood leakage detector;

8. Temperature and electric conductivity monitoring;

9. Arterial pressure, venous pressure and transmembrane pressure monitoring;

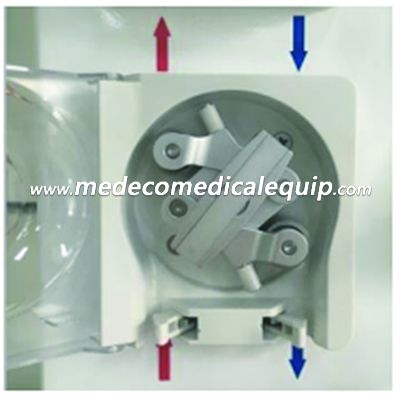

10. Rolling blood pump;

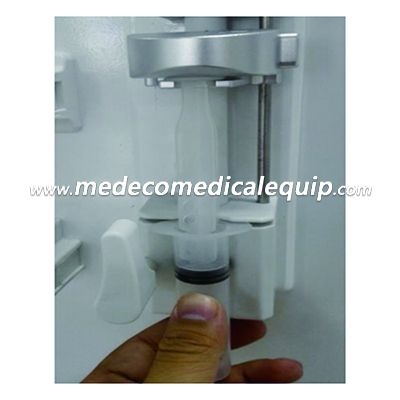

11. Heparin pump;

12. Dehydration amount controlled by capacity;

13. Automatic disinfection cleaning program;

14. Stand-by power of blood pump in case of power failure;

15. Information display function of display screen.

me periods through different "one-button" operation, and automatically complete the whole process of dialysis treatment.

Technical Parameter

Size &Weight:

Size: 380mmx400x1380mm (L*W*H);

Net Weight approx.: 88KG;

Gross Weight approx.: around 100KG;

Package Size approx.: 650×690×1581mm (L x W x H)

Power supply:

AC220V, 50Hz/60Hz, 10A

Input power: 1500W

Back-up battery: 30 minutes

Working Condition:

Water input pressure: 0.1Mpa~0.6Mpa, 15P.S.I~60P.S.I

Water input temperature: 5ºC~30ºC

Working environment temperature: 10ºC~30ºC at relative humidity <=70%

UF rate:

Flow range: 0ml/h~4000ml/h

Resolution ratio: 1ml

Precision: ±30ml/h

Blood pump & substitution pump:

Blood pump flow range: 10ml/min~600ml/min (diameter: 8mm or 6mm)

Substitution pump flow range: 10ml/min~300ml/min (diameter 8mm or 6mm)

Resolution ratio: 0.1ml

Precision: ±10ml or 10% of reading

Heparin pump:

Syringe size: 20, 30, 50ml

Flow range: 0ml/h~10ml/h

Resolution ratio: 0.1ml

Precision: ±5%

Monitoring system &Alarm setup:

Venous pressure: -180mmHg ~ +600mmHg, ±10mmHg

Arterial pressure: -380mmHg ~ +400mmHg, ±10mmHg

TMP: -180mmHg ~ +600mmHg, ±20mmHg

Dialysate temperature: preset range 34.0ºC~39.0ºC

Dialysate flow: Less than 800 ml/min (Adjustable)

Substitution flow range: 0-28 L/H (on line HDF)


Blood leak detection: Photo chromic alarm when erythrocyte specific volume is 0.32±0.02 or

blood leak volume is equal or more than 1ml per liter of dialysate.

Bubble detection: Ultrasonic, Alarm when a single air bubble volume is more than 200μl at

200ml/min blood flow

Conductivity: Acoustic-optic
