  • Horizontal cylindrical pressure steam sterilizer ME-WS-150YDB

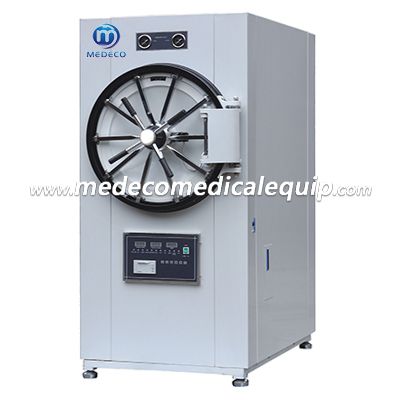

Horizontal cylindrical pressure steam sterilizer ME-WS-150YDB

Share
documents & resoures

Horizontal cylindrical pressure steam sterilizer ME-WS-150YDB ME-WS-200YDB ME-WS-280YDB

                                                                 (microcomputer control)


Parameter:

1.Sterilizing course automatic sterilization controlled by computer, easy to operate.

2.With drying function, suitable dressing drying.

3.With over-temperature, over-pressure auto-protect device.

4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can’t be start on if the doesn’t closed well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.

6.The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7.The chamber of the sterilizer is made of stainless steel.

8.With printer.


Overview:

Technical   dataME-WS-150YDBME-WS-200YDBME-WS-280YDB
Sterilizing chamber 150L200L280L
 volumeφ440×1000mmφ515×1000mmφ600×1000mm
working pressure                   0.22 MPa
working  temperature                    134℃
Adjustment of temperature                  40℃ - 134℃
Time of sterilization                    0-99 min
Time of drying                    0-99 min
Heat average                    ≤± 2℃
Power9KW/380V 50Hz9KW/380V 50Hz12KW/380V 50Hz
Dimension1400×650×16001400×750×17001520×910×1900
Transport dimension1560×820×18201560×910×18801680×1080×2100
 G.W/N.W430/340 KG436/350 KG570/462 KG
