  • Horizontal Cylindrical Pressure Steam Sterilizer ME-WS-150YDC

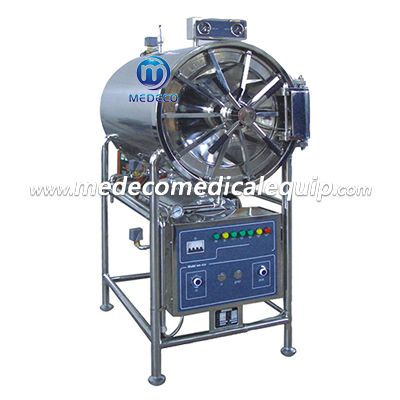

Horizontal Cylindrical Pressure Steam Sterilizer ME-WS-150YDC

Share
documents & resoures

Horizontal Cylindrical Pressure Steam Sterilizer ME-WS-150YDC ME-WS-200YDC ME-WS-280YDC ME-WS-400YDC


Parameter:

1. Sterilizing course automatic sterilization controlled,easy to operate.

2. With drying function,suitable dressing drying.

3. With over-temperature,over-pressure auto-protect device.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

7. Fully stainless steel structure.


Overview:

Technical   dataME-WS-150YDCME-WS-200YDCME-WS-280YDCME-WS-400YDC
Sterilizing chamber 150L200L280L400L
Volumeφ440×850mmφ515×1000mmφ600×1000mmφ700×1100mm
working pressure                                0.22MPa
working  temperature                                  134℃
Adjustment of temperature                             40℃-   134℃
Time of sterilization                               0-99   min
Time of drying                               0-99   min
Heat average                                 ≤±2℃
Power9KW/380V 50Hz9KW/380V 50Hz12KW/380V 50Hz18KW/380V 50Hz
Dimension1400×600×13001400×670×16501400×770×17801430×880×1830
Transport dimension1550×750×18501560×820×18501680×920×21001600×1050×2100
 G.W/N.W320/240 KG350/260 KG465/365 KG530/420 KG
