  • Horizontal Cylindrical Pressure Steam Sterilizer ME-WS-90YDA

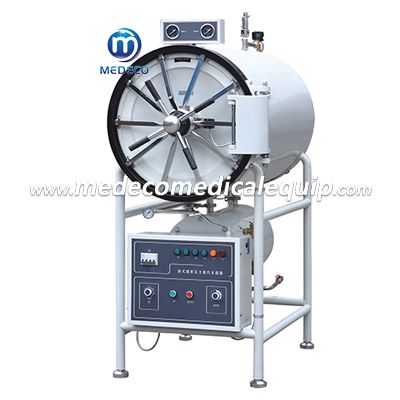

Horizontal Cylindrical Pressure Steam Sterilizer ME-WS-90YDA

Share
documents & resoures

Horizontal Cylindrical Pressure Steam Sterilizer ME-WS-90YDA ME-WS-150YDA ME-WS-200YDA ME-WS-280YDA ME-WS-400YDA ME-WS-500YDA


Parameter:

1. Sterilizing course automatic sterilization controlled,easy to operate.

2. With drying function,suitable dressing drying.

3. With over-temperature,over-pressure auto-protect device.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

6. The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.

7. The chamber of the sterilizer is made of stainless steel.


Overview:

Technical   dataME-WS-90YDAME-WS-150YDAME-WS-200YDAME-WS-280YDAME-WS-400YDAME-WS-500YDA
Sterilizing chamber 90L150L200L280L400L500L
 volumeφ440×700mmφ440×1000mmφ515×1000mmφ600×1000mmΦ700×1100mmΦ700×1300mm
working   pressure                                                 0.22MPa
working  temperature                                                  134℃
Adjustment   of temperature                                              105℃ - 134℃
Time of   sterilization                                                 0-60 min
Time of   drying                                                 0-60 min
Heat   average                                                  ≤±1℃
Power9KW/380V 50Hz9KW/380V 50Hz9KW/380V 50Hz12KW/380V 50Hz18KW/380V 50Hz18KW/380V 50Hz
Dimension1100×600×13001400×600×13001400×670×16501400×770×17801430×880×18301800×900×1820
Transport   dimension1250×750×18501550×750×18501560×820×18501680×920×21001800×1050×21001850×1050×2100
 G.W/N.W270/200 KG320/240 KG350/260 KG465/365 KG530/520 KG580/470 KG
