Medical light V series Dual control shadowless LED Operting Light700 700

Share
documents & resoures

Medical light V series Dual control shadowless LED Operting Light700 700

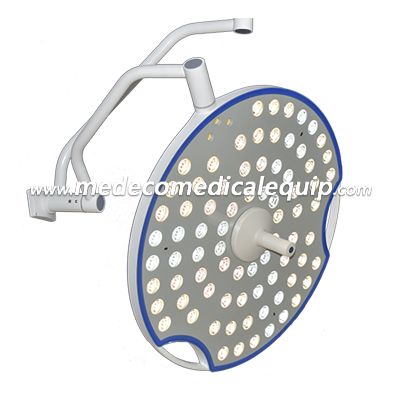

MEDECO V series LED Operating Light fully enclosed conforms to aerodynamic streamline ultraa-thin lamp body design, disinfection, more convenient and flexible operation.

Having excellent medical lighting effects and wide applicability, its an ideal surgical shadowless lighting system that meets the requirement of comprehensive hospitals, beauty salons, dental clinics, dental hospitals and pet hospitals operating rooms.


Model/V LED700/700V LED700/500VLED500/500V LED500VLED 70

mm)

Diameter of Light dome(mm)

700/700700/500500/500500700


LED bulbs(pcs)

78/7878/4242/424278


Luminance(Lux)

15000-160000

/

10000-160000



15000-160000

/

10000-150000

10000-150000

/

10000-150000

10000-15000015000-160000


Focusable light-field size(mm)

120-250120-250120-250120-250120-250


Color Temp.

4000-5500K4000-5500K4000-5500K4000-5500K4000-5500K


Illumination Depth(cm)

≥700mm≥700mm≥700mm≥700mm≥700mm


Red Color Index(R9)

9595959595

Dimming Range


8-100% 11 STEP


Endoscopy Model

yes


Votage Frequency

110~220V 50/60Hz



Head Power(W)

80/8080/5050/505080


LED bulbs Service Life hours

≥50000


Installation height(Ceiling Type)(mm)

2800-3200mm
选配(Optional)(Emergency battery) HD Camera system


Product Feature:

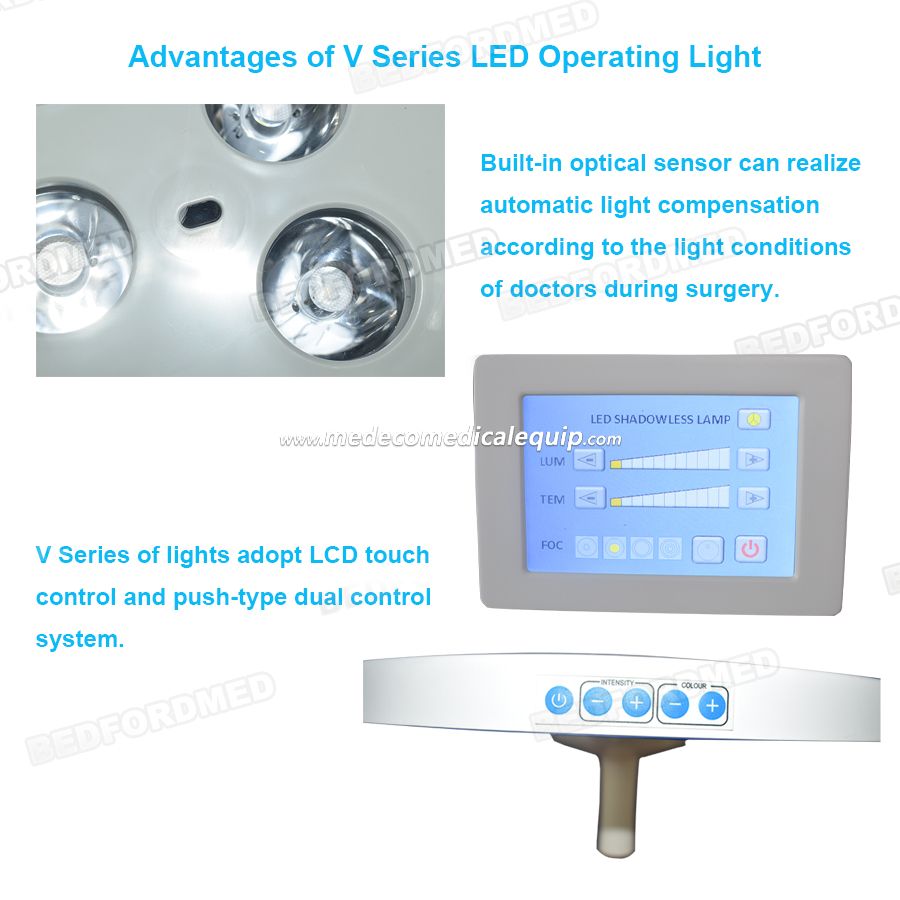

  1. Built-in optical sensor can realize automatic light compensation according to the light conditions of doctors during surgery, Electronic focusing frees hands of doctors and nurses to reduce bacterial infection.

  2. The additional three small lamp beads are suitable for the lighting function of endoscopic minimally invasive surgery. At the same time, a dual-control mode is added to make the operation more convenient and safe.

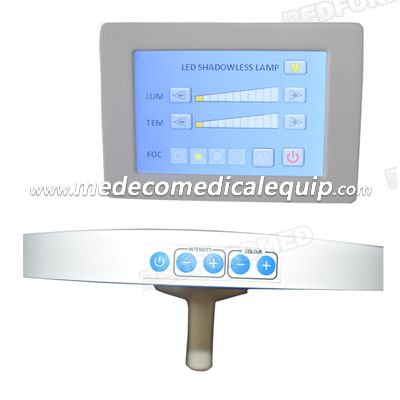

  3. The V series of lights adopt LCD touch control and push-type dual control system. The LCD control panel can realize 11-level parameter adjustment to meet the needs of doctors for different illumination and brightness.

  4. Both sides of the lamp head are hollowed out, which is convenient for doctors to adjust the angle of the surgical lamp anytime and anywhere to meet the surgical needs.

Medical light V  series Dual control shadowless LED Operting Light700 700

Medical light V  series Dual control shadowless LED Operting Light700 700
