New V Series Medical LED Operating Light Ceiling Type 500mm Operaitng Light

Share
documents & resoures

New V Series Medical LED Operating Light Ceiling Type 500mm Operaitng Light


Main Characteristics of New V Series LED Operating Light:

1.The lamp dome adopts a once formed fully enclosed streamline design.

2.The lamp cap is only 52 mm thick.

3.Use a special new type of high-temperature resistant material in a shadowless lamp system.

4.Multiple heat dissipation design

5.All LED chips use original OSRAM high color reproduction LED


Specification and model:

V LED700/700, V LED700/500, V LED500/500,

V LED700, V LED500, V LED700 MOBILE, V LED500 MOBILE

V LED700 MOBILE WITH BATTERY, V LED500 MOBILE WITH BATTERY


Parameters of New V Series LED Operating Light:

ModelV LED500VLED 700
Diameter of Light dome (mm)500700
LED bulbs(pcs)4278
Luminance(Lux)

10000-15000015000-160000

Option: Adjustable Max. Light Intensity:

V LED 700 can reach to 200,000Lux;

V LED 500 can reach to 180,000Lux

Focusable light-field size(mm)120-250120-250
Color Temp.4000-5500K4000-5500K
Illumination Depth(cm)≥700mm≥700mm
Red Color Index(R9)9595

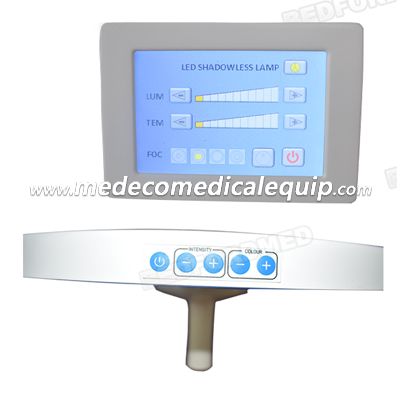

Dimming Range


8-100% 11 STEPS
Endoscopy Modelyes
Votage / FrequencyAC 110~220V 50/60Hz
Head Power(W)5080
LED bulbs Service Life Hours>50000hours
Installation height(Ceiling Type)(mm)2800-3200mm

New V Series Medical LED Operating Light Ceiling Type 500mm Operaitng Light


FAQ:
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.


Q2: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?
A: MOQ is 1 set.


Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
