V Series Hospital Type LED Surgical Lamp 700 Medical Shadowless Operating Light


Features of V Series700 Mobile LED Operating Light:

1. Laminar flow heat dissipation, surface radiation heat dissipation transmits heat from the LED chip to the outside, ensuring that the system operates at relatively low temperatures, achieving maximum luminous effect with minimal power, and effectively improving the service life of LED beads.

2. All LED chips use original OSRAM high color reproduction LED. The spotlight lens adopts PMMA optical lenses with large diameter and small angle, which are imported from well-known French brands.

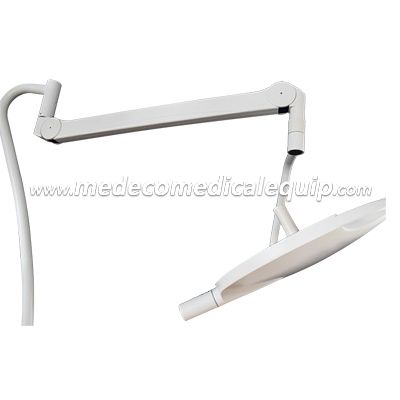

3. The standard configuration of the balance arm includes six sets of universal joints with 360 degree unrestricted rotation, which can meet various surgical height and angle requirements in all directions. It can move flexibly without dead angles and has precise and stable positioning.



Applications of V Series Mobile LED Operating Light:

Having excellent medical lighting effects and wide applicability, it is an ideal surgical shadowless lighting system that meets the requirements of comprehensive hospitals, beauty salons, dental clinics, dental hospitals, and pet hospitals operating rooms.


Specification and model:

V LED700 MOBILE, V LED500 MOBILE

V LED700 MOBILE WITH BATTERY, V LED500 MOBILE WITH BATTERY


Parameters of New V Series LED Operating Light:

ModelV LED700Mobile
Diameter of Light dome (mm)700
LED bulbs(pcs)78
Luminance(Lux)15,000-160,000

Option: Adjustable Max. Light Intensity:

V LED 700 can reach to 200,000Lux

Focusable light-field size(mm)120-250
Color Temp.4000-5500K
Illumination Depth(cm)≥700mm
Red Color Index(R9)95

Dimming Range

8%-100% 11 STEPS
Endoscopy Modelyes
Votage / FrequencyAC 110~220V 50/60Hz
Head Power(W)80
LED bulbs Service Life Hours50000hours
Installation height(Ceiling Type)(mm)2800-3200mm


Advantages of mobile operating shadowless lights:

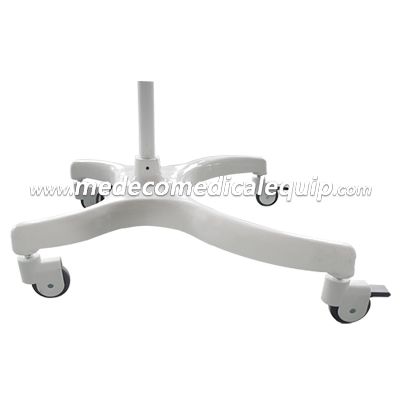

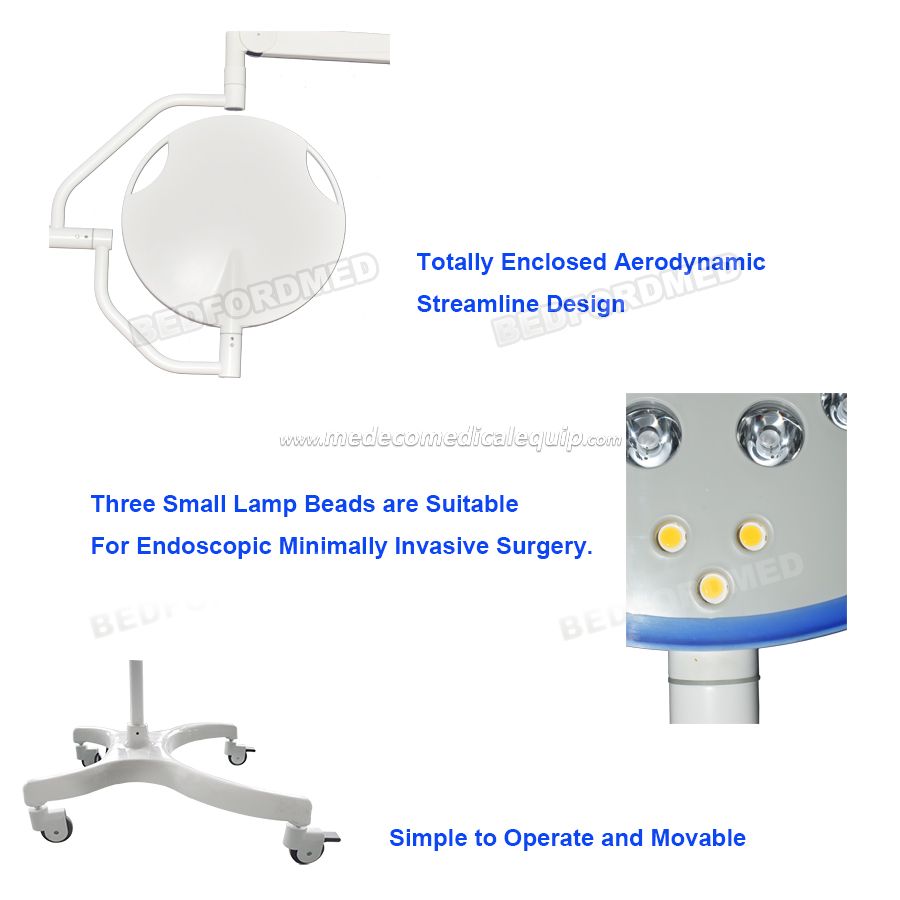

Compared with the ceiling-mounted surgical shadowless lamp, the mobile surgical shadowless lamp has the advantages of being simple to operate and movable.

V Series Hospital Type LED Surgical Lamp 700 Medical Shadowless Operating Light


FAQ:
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.


Q2: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?
A: MOQ is 1 set.


Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
