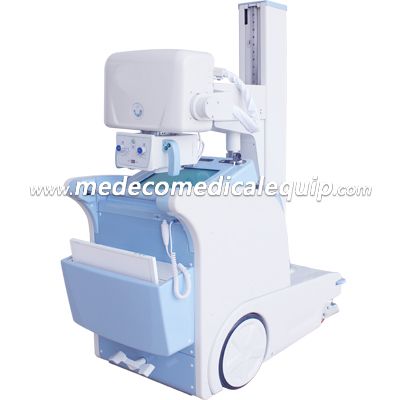

High Frequency Mobile Digital Radiography System MEX5200
I. Application
This unit is high frequency combined digital X-ray radiography medical diagnostic equipment, it is used in radiography department, orthopedics, wards, emergency room, operation room, ICU, etc. It can satisfy the requirement of parts of body such as head, limbs, chest, spine, lung, stomach.
Packing Details: (2 wooden cases)
| Packing Dimension(mm) | NW(Kg) | GW(Kg) | |
| 1 | 1700*1000*2260mm | 505 | 692 |
| 2 | 760*750*660mm | 10 | 55 |
II.Specification
| Type | Item | Spec | |
| High frequency X-ray | Max output power | 25kW | |
| Main Inverter Frequency | 60kHz | ||
| X-ray tube | Focus | 0.6/ 1.3mm | |
| Rotation anode speed | 3000rpm | ||
| Heat capacity | 900kJ (1200kHU) | ||
| Tube current | 200mA | ||
| Tube voltage | 40-125kV | ||
| mAs | 0.4-360mAs | ||
| Digital image system | Digital detector | Detector | Amorphous silicon detector |
| scintillator | Cesium Iodide | ||
| View | 14″×17″ | ||
| Pixel | 3K×3K | ||
| Max spatial resolution | 3.5Lp/mm | ||
| Pixel size | 144μm | ||
| Output gray-scale | 16bits | ||
| DQE | 66% | ||
| Workstation | Acquisition module | Gigabit nets collection | |
| Image processing model | Built-in international advanced Enhance moduleparameters chosen according to particular part | ||
| Image information management | Dicom StorageDicom PrintDicom transmission | ||
| Physical constructionperformance | Distance from floor to focus | Max:195cm; Min:80cm | |
| Distance from focus to pillar | Max:125cm; Min:75cm | ||
| X-ray Tube components can rotate around the telescopic boom axis | ±90º | ||
| Collimator rotate around vertical axis | ±90° | ||
| Rotation range of pillar | ±180° | ||
| Power supply | 220V 50/60Hz | ||
III. Standard Configurationt
| No. | Item | Quantity |
| 1 | High frequency and high voltage Combined X-ray generator | 1 |
| 2 | Portable flat panel detector | 1 |
| 3 | High quality IPC | 1 |
| 4 | Newly designed mobile pillar frame | 1 |
| 5 | Symmetric adjustable, wireless ranging rotatable collimator | 1 |
| 6 | Electric assistance drive system | 1 |
| 7 | Cable exposure hand brake | 1 |
| 8 | Wireless remote control exposure device | 1 |
| 9 | Parts | 1 |
