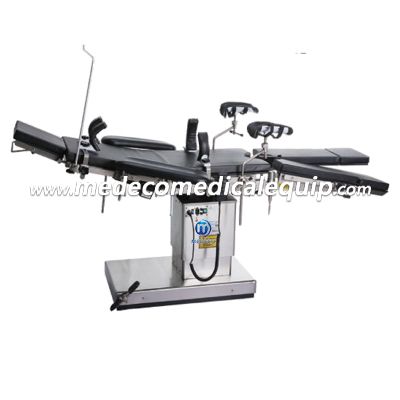

Medical Equipment Electric Operating Table MEDS-2000

Medical Equipment Electric Operating Table MEDS-2000

Parameter:

The product is designed for surgical procedures of head, neck, thorax and abdomen, perineum extremities as well as for gynecological, oto-rhino-laryngological and orthopedics operation. The table top is made of double-decker plastic. So that x-ray examination can be available during operation. Its raising, lowering, lateral tilt, reversed trendelenburg and trendelenburg movement, back section bending are all controlled by electrically. It can adjust easily. And its performance is also reliable. Senior PY foam material is optional for mattress.

Main Usage & Structure：

Electric operating table is suitable for surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as for gynaecological, obstetrical, urological, otorhino laryngological and orthopaedics operations. It’s raising, lowering, lateral tilt, reversed trendelenburg and trendelenburg , the up-down folding of the back section are all conducted electrically and controlled by buttons.

Specifications：

Dimension of table top：

Overall Length……………………………………....2100mm

Width………………………………………………....480mm

Dimension of section：

Head Section……………………………………. ....280×325mm

Back Section…………………………………….......500×480mm

Seat section………………………………………....530×480mm

Leg Section……………………………………….....510×236mm

Foot Section…………………………………………180×273mm

Kidney Bridge………………………………………..100×480mm

Table top of from floor:

Max Height……………………………………………1000mm

Min Height…………………………………………….750mm

Range of movements：

Reversed Tendelenburg……………………………....≥200

Trendelenburg………………………………………....≥150

Lateral tilt………………………………………………..≥150

Adjustment of sections：

Head Section Raised from the horizontal………… ...≥450

Head Section lowered from the horizontal…………...≥900

Leg Section Lowered from the horizontal…………....≥900

Leg Section opened…………………………………....≥900

Back Section Raised from the horizontal………….....≥450

Back Section lowered from the horizontal…………....≥150

Kidney Bridge Elevated………………………………...≥100mm

Safe Working Load……………………………………..135kg

Lifting speed……………………………………………..4～16mm/s

Foot and leg board board into a horizontal or vertical.

IPX4   Ingress Protection：     IPX4

Power：                                 AC220V，50Hz

Internal electric source:       （DC）24V

Battery capacity:                    ≥ 2.4AH

Device safety sort:                 I     B

Accessories：
