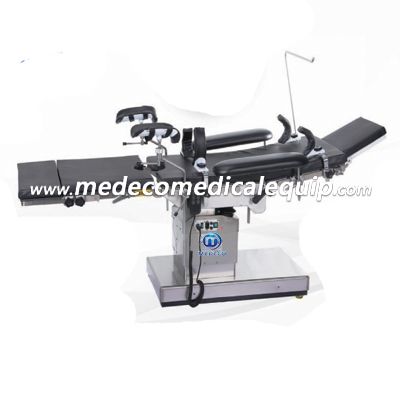

Medical Equipment Electric Operating Table MEDS-2000C

Medical Equipment Electric Operating Table MEDS-2000C

Parameter:

Electric operating table is a specially designed product for cerebral operation, also available in surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as for gynaecological, obstetrical, urological oto-rhino-laryngological. It is a multi-purpose operating table. This operating table can be lowered to 550mm hight from floor for convenient of doctors. There is also a special designed head rack.

Its raising, lowering, lateral tilt, reversed trendelenburg and trendelenburg movement, back section bending are all controlled by electrically, It has a lower noise. And its performance is also reliable. It can be adjusted easily. Various positions as head section, back section, kidney bridge, Leg section can be easiily adiusted.

Main Usage:

Electric operating table can be operated for clinical use.

Structure :

Operating table consists of two parts: mechanical and electro control system.

This operating table can be lowered to 550mm hight from floor for convenienient of doctors.Electric operating table is a specially designed new product for cerebral operation,also available in surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as for gynaecological, obstetrical, urological, otorhino laryngological and cranial operations. It’s raising, lowering, lateral tilt, reversed trendelenburg , trendelenburg and back section bending are all conducted electrically and controlled by buttons.

Specifications：

Dimension of table top：

Overall Length…………………………………………………………………………..2000mm

 Width…………………………………………………………………………………….480mm

Dimension of section：

Head Section……………………………………………………………………………250×480mm

Back Section……………………………………………………………………………465×480mm

Seat section…………………………………………………………………………….450×480mm

Leg Section……………………………………………………………………………..500×480mm

Foot section…………………………………………………………………………….200×530mm

Kidney Bridge…………………………………………………………………………..75×480mm

Table top of from floor：

Max Height ……………………………………………………………………………...800mm

Min Height……………………………………………………………………………….550mm

Adjust…………………………………………………………………………………….250mm

Range of movements：

Reversed Trendelenburg……………………………………………………………….≥20°

Trendelenburg…………………………………………………………………………...≥15°

Lateral Tilt………………………………………………………………………………...≥15°

Adjustment of sections：

Head Section Raised  from the horizontal…………………………………………....≥45°

Head Section lowered from the horizontal…………………………………………....≥90°

Back Section Raised  from the horizontal…………………………………………….≥45°

Back Section lowered  from the horizontal……………………………………………≥5°

Kidney Bridge Elevated…………………………………………………………………≥100mm

Leg Section Lowered from the horizontal……………………………………………..≥90°

Leg section opened (When optional)………………………………………………….≥90°

Foot Section and leg section are on the same horizontal line or on the vertical plane.

Device safety sort:              I     B

Ingress Protection：           IPX4

  Power：                         （AC）220V，50Hz

Internal electric source:   （DC）24V

Battery capacity:                ≥ 2.4AH

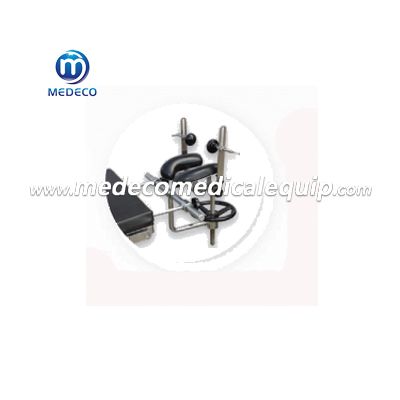

Main Specifications of model B head rack

Head Rack Upward or Dowmward ……………………………………………………...180±20mm

Head Rack  Adjust of Lengthways………………………………………………………50±10mm

Head Rack  Backward or Forward………………………………………………………150±20mm
