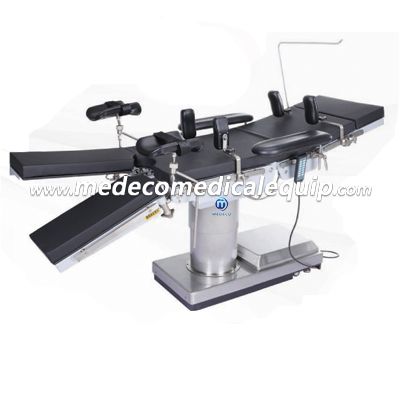

Medical Equipment Electric Operating Table MEDS-99B

Medical Equipment Electric Operating Table MEDS-99B

Parameter:

This Electric Operating Table MEDS-99B is developed independently by our company with innovative and advanced technologies. The table is a first-class comprehensive one with high-quality and multi-purposes, which takes the leading position in the domestic market. The table can be used in almost all kinds of operations such as abdominal surgery, neurosurgery, ENT, obstetrics and gynecology, urology, orthopedics and other types of surgery.

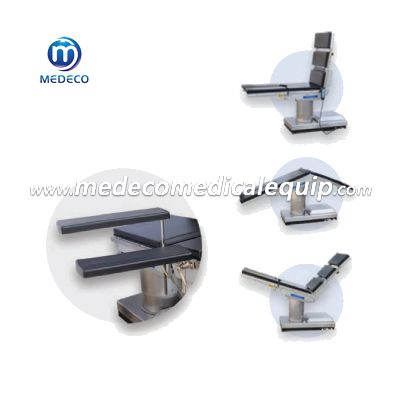

In addition to above-mentioned performance, electric operating table MEDS-99B integrates multi-purposes with advantages: low position design of tabletop meets the requirement of needed low position in the operation; adjustable tabletop, moveable in the longitudinal direction rotation angle of tabletop conducting full-body imaging and perspective examination with c-arm without moving the Patient for ample space, and providing doctors with comfortable positions for perspectives and surgical operations. No beam between head section and back section, cervical perspective; five-section structure, V-shaped, and anti-V-shaped composite position; Back section downward, anti-V-shape with sitting section, helpful to kidney surgery; back section upward, forming sitting position, to facilitate the brain surgery; detachable head and feet section.

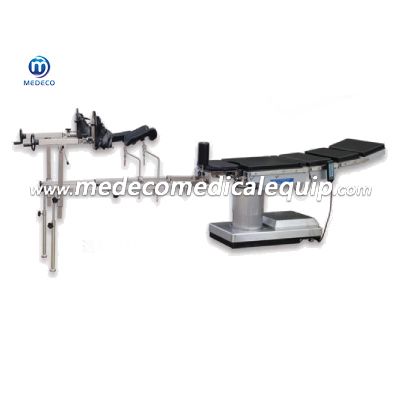

Option: uninterruptible power system, and automatic reset systems, Option: orthopedic traction table. Excellent performance, comprehensive functions, beautiful appearance, easy operation, the main body material is made from high-strength cast iron, aluminum, stainless steel; mattress is made of senior PY foam materials. Imported parts in hydraulic system, stable performance, low noise.

Main Usage:

Electric operating table can be operated for clinical use.

Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Specifications:

Dimension of table top：

Overall Length……………………………………………………2150mm

Width………………………………………………………………500mm

Dimension of section：

Head Section……………………………………………………250×500mm

Shoulder Section………………………………………………250×500mm

Back Section……………………………………………………250×500mm

Seat section……………………………………………………550×500mm

Leg Section……………………………………………………600×240mm

Table top of from floor:

Min Height………………………………………………………580mm

Max Height………………………………………………………930mm

Adujst……………………………………………………………350mm

Range of movements：

Reversed Trendelenburg……………………………………≥20°

Trendelenburg…………………………………………………≥15°

Lateral Tilt………………………………………………………≥15

Backward and Forward Movements…………………………≥250mm

Adjustment of sections：

Head Section Raised  from the horizontal…………………≥45°

Head Section lowered from the horizonta…………………≥90°

Shoulder Section Raised from the horizontal………………≥25°

Shoulder Section lowered  from the horizontal……………≥20°

Back Section Raised from the horizontal…………………≥75°

Back Section Raised from the horizontal…………………≥30°

Leg Section Lowered from the horizontal…………………≥90°

Leg section opened…………………………………………≥90°

Horizonal ratation of tabletop………………………………0～180°

Level reset zero (elected timing)……………………………±2°

Level reset zero (elected timing)……………………………±2°

Lifting speed…………………………………………………4～16mm/s

safe working load……………………………………………135kg

Device safety sort:       I    B

IPX4 Ingress Protection： IPX4

Power：                 （AC）220V，50Hz

Battery capacity:        ≥ 2.4AH

Accessories:
