Medical Equipment Electric Operating Table MEDS-99E-1

Medical Equipment Electric Operating Table MEDS-99E-1

Parameter:

MEDS-99E-1 electric image integrated operating table applied a combination of modern technology and humanization design concept, electro-mechanical drive technology. This product combines many functions

1. Low lift and the distance of the mesa is 450mm. There is ample space for use with c-arm.

2. Vertical panning up to 500mm, do not need to reverse out patient or adjust the table in advance to General c-arm pivot to the patient and image review.

3. 4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems.

4. It has emergency power. It can be used when the electric power is off.

5. In set waist bridge.

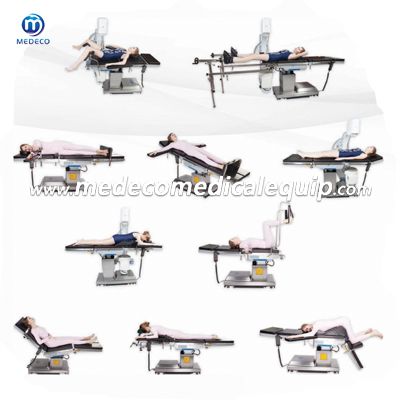

6. The mesa of the table can male V style body position100°Anti-V220°.

7. Using memory foam, natural plastic in accordance with the patient's body temperature and body size, removable (Optional Components).

8. Backup operating system.

Main Usage & Structure

1) Main Usage: Electric operating table can be operated for clinical use.

2) Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Specifications:

Dimension of table top：

Overall Length………………………………………………………2100mm

Width…………………………………………………………………500mm

Dimension of section：

Head Section…………………………………………………………250×500mm

Back Section…………………………………………………………465×500mm

Kidney Bridge………………………………………………………75×500mm

Seat section…………………………………………………………630×500mm

Leg Section…………………………………………………………600×240mm

Table top of from floor

Min Height……………………………………………………………700mm

Max Height……………………………………………………………1150mm

Adjust…………………………………………………………………450mm

Range of movements：

Reversed Trendelenburg……………………………………………≥30°

Trendelenburg…………………………………………………………≥25°

Lateral Tilt………………………………………………………………≥25°

Backward and Forward Movements…………………………………≥530mm

Adjustment of sections：

Head Section Raised  from the horizontal……………………………≥45°

Head Section lowered from the horizonta……………………………≥90°

Back Section Raised from the horizontal……………………………≥75°

Back Section Lowered from the horizontal…………………………≥30°

Leg Section Lowered from the horizontal……………………………≥90°

Leg section opened……………………………………………………≥90°

Kidney Bridge Elevated (When optional)……………………………≥80mm

Level reset zero (When optional)……………………………………±2°

Lifting speed……………………………………………………………4～16mm/s

safe working load………………………………………………………150kg

Device safety sort:          ⅠB

Ingress Protection：        IPX4

Power：                        （AC）220V，50Hz

Internal electric source:（DC）24V

Battery capacity:          ≥ 2.4AH

Structure:

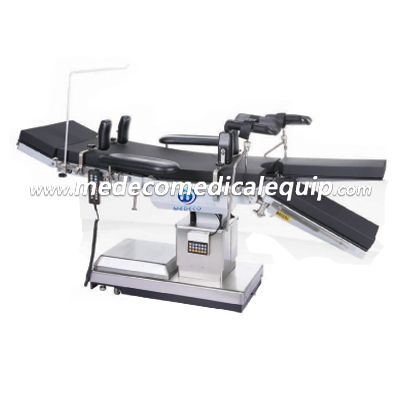

1 The Electric operating table uses electro-hydraulic systems to control all the movements: height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement , kidney bridge elevating ,V style and Anti-V, brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.

2 The table comprises of five sections: head section, back section, Waist Section（When optional), sitting section and leg section. The forward and backward movement of tabletop can make C-arm perspective quick and easy.

3 The reset function and emergency power supply is Optional. Emergency power supply is made of lead-acid batteries, which can be automatically charged. Emergency power supply can start to work automatically when the power is off.

4 The main material is stainless steel, high-intensity cast iron, aluminum, good solidity.

5 Electric operating table mattresses are produced by the high-density sponge covered leatherette materials or overall bubble forming.

6 The appearance of the stainless steel round cover and base is nice and elegant. The cover is dust-proof and water-proof. The table is stable and practical.

7 Electric operating table equipped with electric brakes, electro-hydraulic brake cylinder to achieve bed. Four legs have self-compensation function, height can be adjusted automatically to eliminate the impact of uneven floors. At the same time with the emergency manual release feature.
