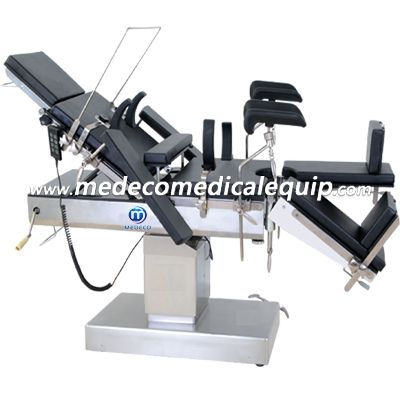

Medical Equipment Electric Operating Table MEDS-99E-A

Medical Equipment Electric Operating Table MEDS-99E-A

Parameter:

Electric Operating Table is designed for all operations in spitals. Besides all functions of the domestic products, it has its own advantages:

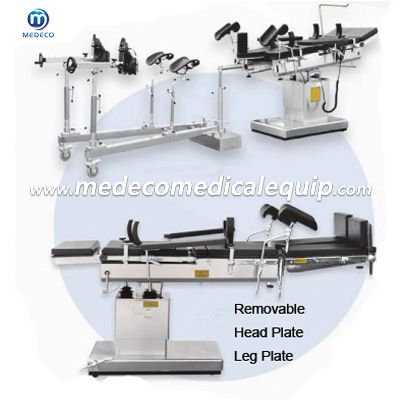

1.Leg section can be rotated, opened, detachable and adjusted easily. It is most adapt to the urological operation.

2. The table top is made of high-strength synthetic boards, can move backwards and forwards. x- ray examination can be carried out on it.

3. With 24V direct supply, the table is safe and reliable. The table' s elevation, lowering, reversed trendelenburg: trendelenburg, lateral tilt are all automatically controlled by the button.

4. This table can be configured with different kinds of table tops for different use.

5. The ascending and descending movements, lateral tilt movements, reversed trendelenburg, trendelenburg movements and backward and forward movements of the table top are all electrically operated.

Electric Operating Table is one of the most advanced operating table with excellent functions in China, availabie for the Model C arm.

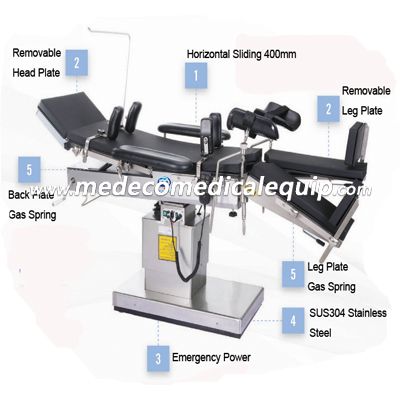

The back section and the leg section of model MEDS-99A is equipped with the barometric pressure spring. Senior PY foam material is optional for mattress.

Main Usage:

Electric operating table can be operated for clinical use.

Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Specifications:

Dimension of table top：

Overall Length……………………………………………………………2100mm

Width………………………………………………………………………500mm

Dimension of section：

Head Section………………………………………………………………250×500mm

Back Section………………………………………………………………545×500mm

Seat section……………………………………………………………....450×500mm

Leg Section………………………………………………………………600×240mm

Kidney Bridge…………………………………………………………....75×500mm

Foot Section……………………………………………………………..180×273mm

Table top of from floor:

Min Height………………………………………………………....750mm

Max Height…………………………………………………………1000mm

Adujst………………………………………………………………250mm

Range of movements：

Reversed Trendelenburg…………………………………………≥20°

Trendelenburg……………………………………………………..≥15°

Lateral Tilt…………………………………………………………..≥15°

Backward and Forward Movements……………………………..≥400mm

Adjustment of sections：

Head Section Raised  from the horizontal……………………...≥45°

Head Section lowered from the horizonta………………………≥90°

Back Section Raised from the horizontal……………………….≥45°

Kidney Bridge Elevated…………………………………………..≥80mm

Leg Section Lowered from the horizontal………………………≥90°

Leg section opened…………………………………..................≥90°

safe working load…………………………………………………135kg

Lifting speed………………………………………………………4～16mm/s

Foot and leg board board into a horizontal or vertical.

Device safety sort:           I     B

Ingress Protection：        IPX4

Power：                        （AC）220V，50Hz

Internal electric source:（DC）24V

Battery capacity:             ≥ 2.4AH
