Medical Equipment Electric Operating Table MEDS-99E-D

Medical Equipment Electric Operating Table MEDS-99E-D

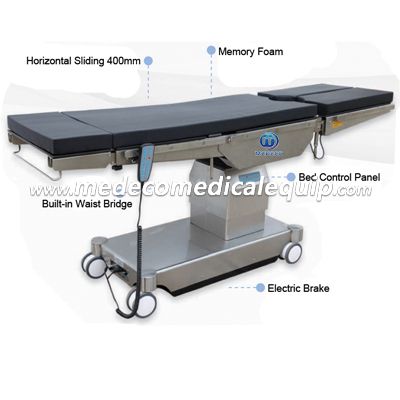

Medical Equipment Electric Operating Tables well as for gynecology, and obstetrics, orthopedics and so on operations. The table‘s elevation, lowering, reversed trendelenburg； trendelenburg, lateral tilt are all automatically controlled by the button, the back section elevation is controlled by high pressure gas jar. It can be adjusted easily, The airproof base is dustproof, waterproof and stable, its model is easy for doctor to near the patient, and reduces the doctor’s weary. The table is made of high-strength synthetic boards, it can penetrate the x-ray, it advantageous for the perspective and the photography.

Senior PY foam material is optional for mattress. It also can be used with c-arm. Fiberglass reinforced plastic or stainless steel is optional for the cover of base.

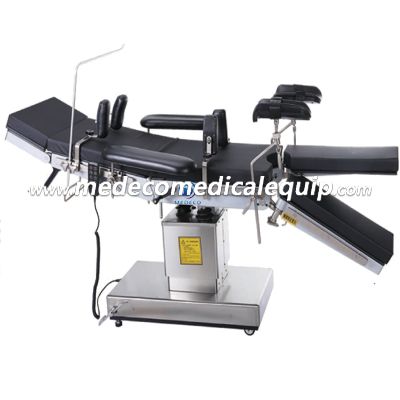

Electric operating table is suitable for surgical procedures of the and extremities urological, otorhino laryngological and operations. Its raising, lowering, lateral tilt, reversed Trendelenburg, and Trendelenburg, backward and forward movements are all conducted electrically and controlled by buttons.

Overview：

Main Usage:

Electric operating table can be operated for clinical use.

Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Specifications:

Dimension of table top：

Overall Length……………………………………………………2100mm

Width………………………………………………………………500mm

Dimension of section：

Head Section……………………………………………………..250×500mm

Back Section……………………………………………………...545×500mm

Waist Section…………………………………………………….75×500mm

Seat section……………………………………………………...450×500mm

Leg Section……………………………………………………....600×240mm

Table top of from floor:

Min Height………………………………………………………...750mm

Max Height………………………………………………………..1000mm

Adujst……………………………………………………………...250mm

Range of movements：

Reversed Trendelenburg……………………………………….≥20°

Trendelenburg…………………………………………………...≥15°

Lateral Til…………………………………………………………≥15°

Backward and Forward Movements…………………………..≥250mm

Adjustment of sections：

Head Section Raised  from the horizontal………………………≥45°

Head Section lowered from the horizonta………………………≥90°

Back Section Raised from the horizontal……………………….≥75°

Back Section Raised from the horizontal……………………….≥30°

Leg Section Lowered from the horizontal………………………≥90°

Leg section opened……………………………………………….≥90°

Kidney Bridge Elevated…………………………………………..≥80mm

Lifting speed………………………………………………………..4～16mm/s

safe working load…………………………………………………..135kg

Device safety sort:           I     B

Ingress Protection：        IPX4

Power：                         （AC）220V，50Hz

Internal electric source: （DC）24V

Battery capacity:              ≥ 2.4AH
