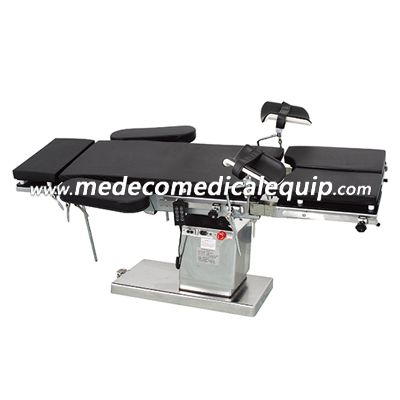

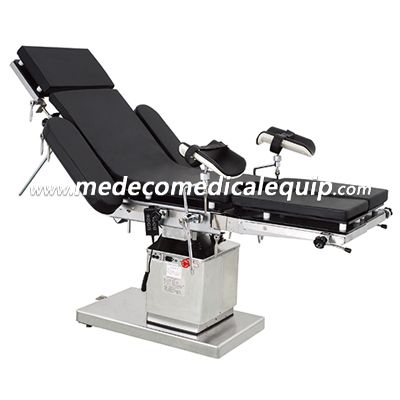

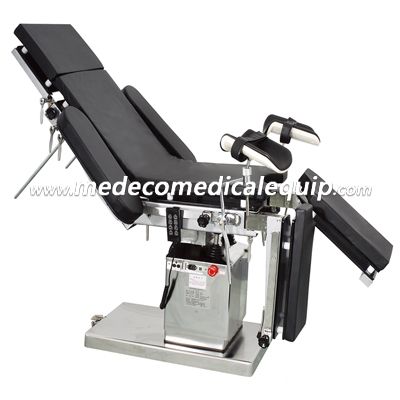

Medical Surgical Electric Motor Operating Table DT-12A

Advantages of Electric Motor Operating Table DT-12A:

DT-12A Electric operating bed is power-driven and its control structure is made up of the hand controller and the motor-driven push-rod.Power can be supplied by the motor-driven push-rodand control to-and-fro motions of each action.In addition,the hand controller can control the operation bed to change all kinds of positions. It is equipped with functions like integral lifting,right-left inclination,back-and-forth inclination,folding ofback board so that it can meet requirements of operations.

All main transmission structures,such as chassis and lifting columns,are covered by 304 stainless steel.The bed board is made of the anti-pollution high strength carbon plates with high acid and alkali resistance and it is fire-resistant,durable with good X-ray penetrability ability.

Parameters of Electric Motor Operating Table DT-12A:

Model:DT-12A Electric Motor Operating Table

Bed size: 2060×500mm

Minimum height of operating table: ≥720mm

Bed surface lift: ≥250mm, suitable for various surgical heights

Left tilt ≥ 16° Right tilt ≥ 16°; Forward tilt ≥ 20° Backward tilt ≥ 20°

Head plate turning: Up fold ≥ 50° and down fold ≥ 90° (the head plate is plug-in type)

Back panel bending: upper fold ≥ 60°, lower fold ≥ 20°

Leg board: turn outward/fold up/fold down ≥90°/≥5°/≥90°

Waist bridge manual lifting: ≥80mm

Attachments:

Anesthesia screen holder: 1piece
