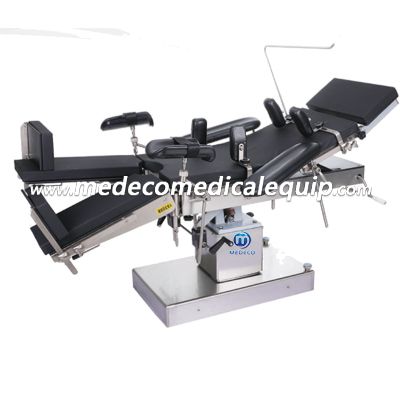

Multi-purpose Operating Table, Head controlled ME-3002

Multi-purpose Operating Table, Head controlled ME-3002

Parameter:

This table is suitable for surgical procedures of the head, neck, thorax, abdomen, perineum and extremities as well as for gynecological, oto-rhino-laryngological and orthopedics operations.The table' s elevation, lowering, reversed trendelenburg, trendelenburg, lateral tilt can be all automatically controlled. Leg section can be rotated, opened, disassembled and adjusted easily. It is most suitable for the urological operation. The table top made of high-strength synthetic panels, can move backwards and forwards, x-ray examination can be carried out on it. It can be raised or lowered hydraulically by means of an oil pump. Various positions can be controlled from both sides. Chassis inside & outside cover are stainless steel.

Specifications:

Dimensions of Table Top:

Overall length…………………………………………………………………2100mm

Width…………………………………………………………………………..500mm

Dimensions of Sections:

Head Rest ……………………………………………………………………250×500mm

Back section …………………………………………………………………465×500mm

Kidney Bridge………………………………………………………………...75×500mm

Seat Section …………………………………………………………………450×500mm

Leg Section …………………………………………………………………..600×240mm

Foot Rest ……………………………………………………………………..273×180mm

Table Top from Floor

Min. height…………………………………………………………………….750mm

Adjust…………………………………………………………………………..≥200mm

Range of Movements:

Max. Reversed Trendelenburg………………………………………………≥15°

Max. Trendelenburg…………………………………………………………  ≥20°

Max. Lateral Tilt………………………………………………………………..≥15°

Adjustments of  Sections：

Head Rest-raised from the horizontal……………………………………….≥45°

Head Rest-lowered from the horizontal……………………………………..≥90°

Back Section-raised from the horizontal…………………………………….≥45°

Leg Section-lowered from the horizontal ……………………………………≥90°

Leg Section-opened……………………………………………………………≥90°

Backward and Forward movements………………………………………….≥400mm

Kidney Bridge Elevation………………………………………………………..≥100mm

Foot Rest-can be kept horizontally or perpendicularly to the Leg Section.

Safe working load………………………………………………………………135kg
