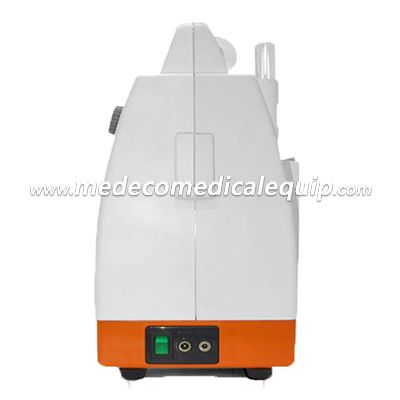

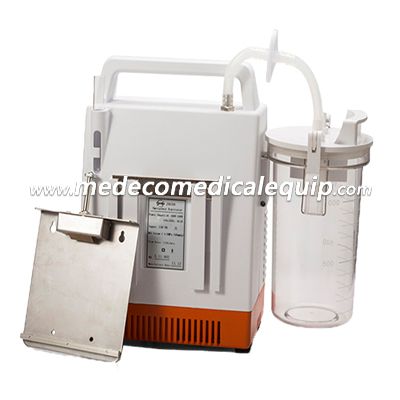

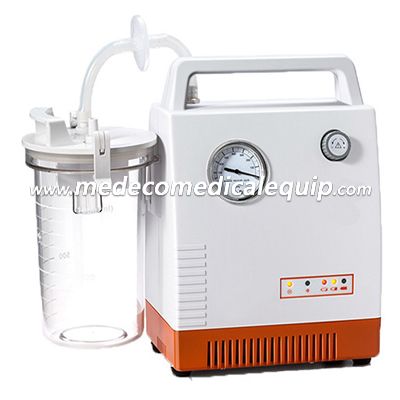

ME820D/ME820D-1 Emergency Aspirator

ME820D/ME820D-1 Emergency Aspirator

Features:

The model is the latest portable AC/DC suction unit. It is specially used for secretion, blood, vomitus and mucus removal of the patient who have undergone tracheostomy or had the trachea blocked, and for emergency treatment to a respiratory tract patient in hospital, first-aid teams, or social medical services, especially for a patient who is transported by vehicle or is in a place without AC/DC power supply.

1. Long life piston cylinder which requires no lubrication or daily maintenance produces no pollution to the environment.

2. Provided with three kinds of electrical sources, AC100V~240V 50/60Hz, external DC12V, and internal battery, it can be conveniently used in many places.When the rechargeable internal batteries are full charged,Model ME820D can be used continuously more than 25 minutes,and for Model ME820D-1 more than 60 minutes. They may be attached to the cigar lighter (DC12V)directly when used on the vehicles such as ambulance.

3. The internal battery is charged with constant voltage and limited current while the unit is working or being attached to AC100V~240V 50/60Hz or external DC 12V power supply. The capacity of the battery is respectively indicated by green, yellow and orange neons.

4. Overflow protection device can safely and efficiently prevent the liquid from entering into pump. Bottles made of plastic material are transparent, durable and convenient for cleaning.

5. Body made of plastic material is handy and beautiful. The wall-mounting frame make it widely used in the room, on vehicle and conveniently hung on the side of the wheelchair.

Specification parameter:

1. Max Vacuum: ≥0.08MPa (600mmHg)

2. Vacuum range : 0.02MPa～Max vacuum

3. Flow rate : ≥20 L/min

4. Noise :≤65dB(A)

5. Jar capacity: 1000mL(PC)

6. Operating voltage: DC 12V ; AC 100V～240V 50/60Hz

7. Input :110VA

8. ME820DBattery duration on full charge: ≥25min;

   ME820D-1Battery duration on full charge: ≥60min

9. Dimension:（1 set）405mm×200mm×360mm;(2 set)430mm×420mm×390mm

10.ME820D:G.W./N.W.: 6.5/4.5kg;ME820D-1:G.W./N.W.:5.9/3.9kg
