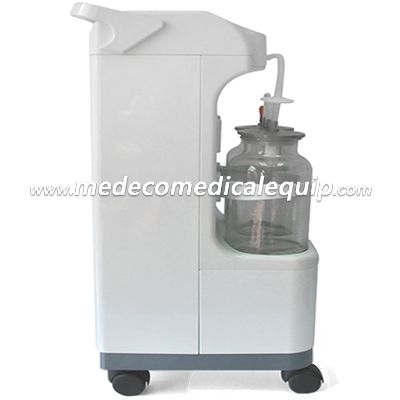

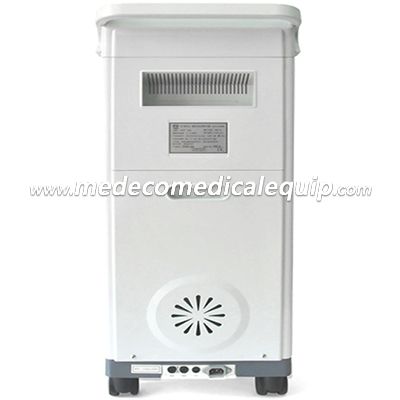

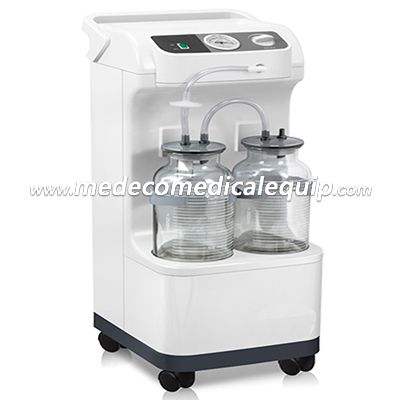

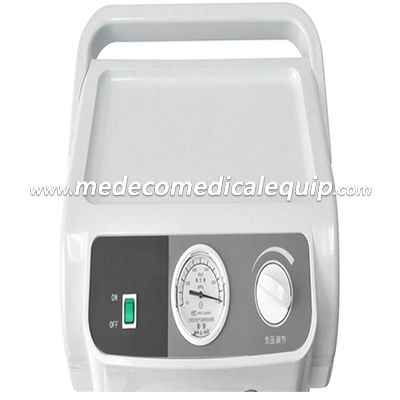

ME932M ELECTRIC SUCTION APPARATUS(DIAPHRAGM TYPE)

ME932M ELECTRIC SUCTION APPARATUS(DIAPHRAGM TYPE)

Features:

ME932M Electric Suction Apparatus (Diaphragm type) is novel designed medical suction equipment with high vacuum and large flow, intended for extracting secretion from patients' airway or exudation and flushing fluid from body cavity during operation in medical institution.(Not apply to induced abortion operation.)

1. Oil-less diaphragm type pump,maintenance free, fast vacuum accumulation.

2. The pummp runs practically with minimum noise under well-designed noise control system.

3. Overflow protection device prevents liquid from entering into the inner pipe.

4. Stepless vacuum regulation is available based on clinic request.

5. Work stably,easy to operate,low noise and long service life.

Specification parameter:

1. Max Vacuum:≥0.093MPa(698mmHg)

2. Free airflow:≥32L/min

3. Liquid storage bottle:2500ml×2(glass)

4. Power supply:AC220V  50Hz

5. Input:380VA

6. Dimemsion:465mm×425mm×920mm

7. G.W./N.W.:28kg/25kg
