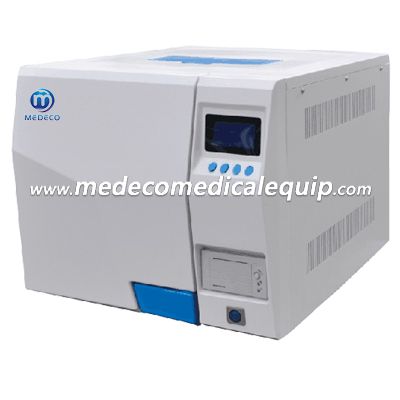

Pulsating Vacuum Desktop Steam Sterilizer ME-TM-XD12DV/XD20DV/24DV

Share
documents & resoures

Pulsating Vacuum Desktop Steam Sterilizer ME-TM-XD12DV/XD20DV/24DV


Overview:

1.Standard Class B with three times vacuum and drying, the remaining temperature of sterilizer instrument is less than 0.2%.

2.LCD display working status, touch keys.

3.The vacuum data can reach -0.8bar, it fits various instrument,including package、unpackage、solid、hollow、multi-apertures and inset pipes.It makes sure the instrument can be sterilized completely.

4.Fully computer controlled LCD display bright show.The interface is modularized panel for easy operation.

5.It is installed with BOWIE&DICK which measures the penetration of water steam.

6.It has vacuum test which can make sure the ability of vacuum testing.

7.Fast and independent steam generator.

8.Built-in mini printer which can record the sterilizing information.

9.Equipped with Safety valve、Safety lock door ststem、Pressure lock system、Pressure or temperature overload protection、Alarm system.

10.It inactivates the HIV,HBV,BSE,and bacillus efficiently.


Parameter:

MODEL TECHNICAL   DATAME-TM-XD12DVME-TM-XD20DVME-TM-XD24DV
Sterilizing chamber volume12L(φ200×370 mm)18L(φ250×360   mm)24L(φ250×470   mm)
Working pressure                             0.22Mpa
Working temperature                              134℃
Adjustment of temperature                            105-134℃
Timer                            0-99   min
Heat average                            ≤ ±   1℃
PowerAC220V   50Hz/1.8KWAC220V   50Hz/2KWAC220V   50Hz/2KW
Dimension560×470×400   mm560×470×400   mm675×470×400   mm
Exterior package dimension655×560×495   mm655×560×495   mm765×560×495   mm
 G. W/N.W48/43   kg52/47   kg58/53   kg
