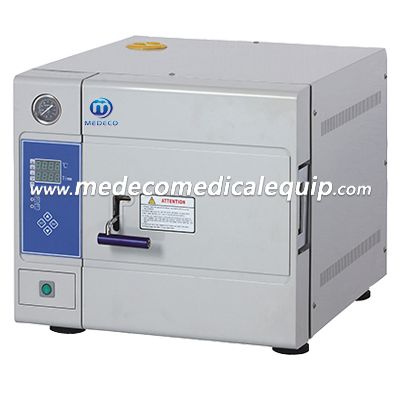

Pulsating Vacuum Desktop Steam Sterilizer ME-TM-XD35DV/XD50DV/XD90DV

Share
documents & resoures

Pulsating Vacuum Desktop Steam Sterilizer ME-TM-XD35DV/XD50DV/XD90DV


Overview:

1.Standard Class B with three times vacuum and drying,the remaining temperature of sterilized instrument iS less than 0.2%
2.LCD display working status,touch keys
3.The vacuum data can reach-0.8bar,it fits various instrument,including package、unpackaged、solid、hollow、multi—apertures and inset pipes It makes sum the instrument can be sterilized completely
4.Fully computer controlled LCD display bright show The interface is modularized panel for easy operation
5.It is installed with BOWIE&DICK which measures the penetration of water steam
6.it has vacuum text which can make sure the ability of texting vacuuming
7.Fast and independent steam generator
8.Built—in mini printer which can record the sterilizer information.
9.Safety valve、Safety lock door system、Pressure lock system、Pressure or temperature overload
 protection、Alarm system
10.Can inactivate HIV、HBV、 mad COW Virus and bacillus


Parameter:

MODEL TECHNICAL   DATAME-TM-XD35DVME-TM-XD50DVME-TM-XD90DV
Sterilizing chamber volume35L(φ300×500 mm)50L(φ340×550 mm)90L(φ400×720 mm)
Working pressure                            0.22Mpa
Working temperature                            134℃
Adjustment of temperature                           105-134℃
Timer                           0-99   min
Heat average                           ≤ ±   1℃
PowerAC220V   50Hz/2.7KWAC220V   50Hz/2.7KWAC220V   50Hz/4KW
Dimension730×550×510   mm770×600×540   mm1000×690×610   mm
Exterior package dimension810×680×650   mm880×730×700   mm1070×740×700   mm
 G. W/N.W115/93   kg130/106   kg200/180   kg
