  • TABLE TOP STEAM STERILIZER ME-TM-T24J/T16J

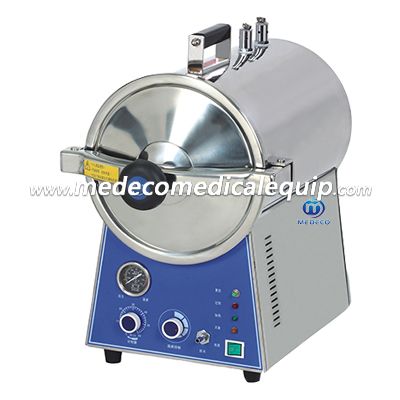

TABLE TOP STEAM STERILIZER ME-TM-T24J/T16J

Share
documents & resoures

TABLE TOP STEAM STERILIZER ME-TM-T16J/T24J


1.Overview:

Sterilizing course: Automatic sterilization controlled by computer, easy to operate.

Maximum temperature: up to 134 ℃, suit for 4-6 minutes rapidly sterilizing.

Safe protection of water lacking.

With over-temperature, over-pressure auto-protect device:

After sterilization it will automatically cut the power and then alarm.

Fully stainless steel structure.


2. USE

The sterilizer is a table type in safety and auto-controlled, which is designed for the unit of medical health, pharmacy, science and technology etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food and other goods.


3.Parameter

MODEL  TECHNICAL DATAME-TM-T16JME-TM-T24J
Sterilizing chamber volume16L(φ250×360 mm)24L(φ270×410 mm)
working pressure0.22Mpa0.22Mpa
working temperature134℃134℃
Adjustment of temperature105-134℃105-134℃
Timer0-60 min0-60 min
Heat average≤ ± 1℃≤ ± 1℃
Power1.5 KW / AC220V 50Hz1.5 KW / AC220V 50Hz
Sterilizing plate340 ×200 × 30 mm ( 3piece )340 ×200 × 30 mm ( 3piece )
Dimension545 × 328 × 423 mm560 × 350 × 500 mm
Package dimension620 × 410 × 570 mm620 × 410 × 570 mm
G.W/N. W18/15 kg20/18 kg
