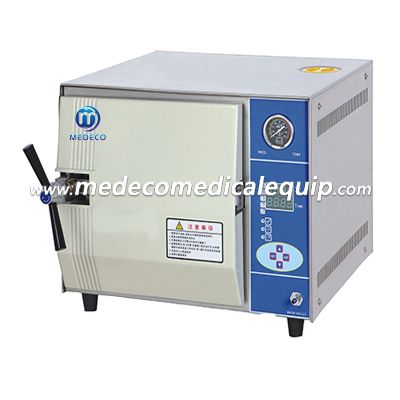

TABLE TOP STEAM STERILIZER  ME-TM-XA20D/24D

   Fully Automatic Microcomputer Type


Overview:

1.For 4~6 minutes rapidly sterilizing.

2.Digital display of working status,touch type key.

3.With 3 fixed cycles of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.

4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5.Exhaust the cool air automatically.

6.Safe protection of water lacking.

7.Door safety lock system.

8.With three stainless steel sterilizing plates.

9.The chamber of the sterilizer is made of stainless steel.

10.Automatically shut off with beep reminding after sterilization.

11.With drying function.


USE:

The sterilizer is a table type in safety and auto-controlled, which is designed for the unit of medical health, pharmacy, science and technology etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food and other goods.


Parameter:

MODEL   TECHNICAL DATAME-TM-XA20D ME-TM-XA24D
Sterilizing chamber volume20L(φ250×420   mm)24L(φ250×520   mm)
Maximum working pressure                           0.22Mpa
Maximum working temperature                            134℃
Adjustment of temperature                          105-134℃
Timer                            0-99min
Chamber temperature equal                          ≤ ±   1℃
Source power                      1.5KW   / AC220V 50Hz
Sterilizing plate340×200×30   mm (3 piece)400×200×30   mm (3 piece)
Dimension480×480×384 mm580×480×384 mm
Package dimension700×580×500   mm800×580×500   mm
G. W/N.W43/40   kg50/45   kg
