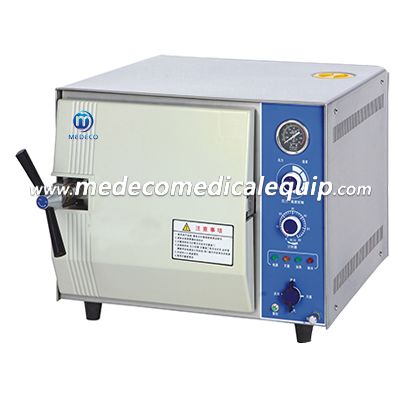

TABLE TOP STEAM STERILIZER ME-TM-XA20J/24J


Overview

1.Indicator light indicates working state.

2.For 4~6 minutes rapidly sterilizing.

3.Sterilizing temperature and time can be preset.

4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5.Over temperature & over pressure auto-protection.

6.Safe protection of water lacking.

7.Exhaust the cool air automatically.

8.Door safety lock system.

9.With three stainless steel sterilizing plates.

10.Fully stainless steel structure.

11.Automatically shut off with beep reminding after sterilization.


USE

The sterilizer is a table type in safety and auto-controlled, which is designed for the unit of medical health, pharmacy, science and technology etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food and other goods.



Parameter

MODEL TECHNICAL   DATAME-TM-XA20JME-TM-XA24J
 Sterilizing chamber volume20L   (φ250×420mm)24L(φ250×420mm)
 Maximum working pressure                                           0.22Mpa
 Maximum working temperature                                             134℃
 Adjustment of temperature                                           105-134℃
 Timer                                            0-60   min
 Chamber temperature equal                                             ≤±1℃
 Source power                          1.5KW/AC    220V50Hz(AC110V 60HZ)
 sterilizing plate340×200×30mm(3   piece)400×200×30mm(3   piece)
 Dimension480×480×384   mm580×480×384   mm
Package dimension700×580×500   mm800×580×500   mm
G. W / N.W43/38    kg50/44   kg
