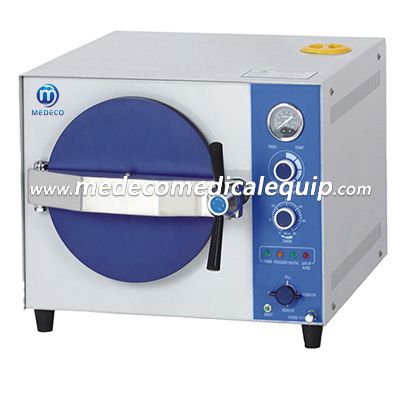

TABLE TOP STEAM STERILIZER ME-TM-XB20J/24J


Overview:

1.Indicator light indicates working state.

2.For 4~6 minutes rapidly sterilizing.

3.Sterilizing temperature and time can be preset.

4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5.Over temperature & over pressure auto-protection.

6.Safe protection of water lacking.

7.Exhaust the cool air automatically.

8.With three stainless steel sterilizing plates.

9.The chamber of the sterilizer is made of stainless steel.

10.Automatically shut off with beep reminding after sterilization.


USE

The sterilizer is a table type in safety and auto-controlled, which is designed for the unit of medical health, pharmacy, science and technology etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food and other goods.


Parameter

MODEL TECHNICAL   DATAME-TM-XB20JME-TM-XB24J
Sterilizing chamber volume20L(φ250×420   mm)24L(φ250×520   mm)
Maximum working pressure                       0.22Mpa
Maximum working temperature                        134℃
Adjustment of temperature                       105-134℃
Timer                       0-60   min
Chamber temperature equal                       ≤ ±   1℃
Source power             1.5KW/AC   220V 50Hz (AC110V 60HZ)
Sterilizing plate340×200×30   mm (3 piece)400×200×30   mm (3 piece)
Dimension480×480×384   mm580×480×384   mm
Package dimension700×580×500   mm800×580×500   mm
 G. W/N.W44/40   kg50/45   kg
