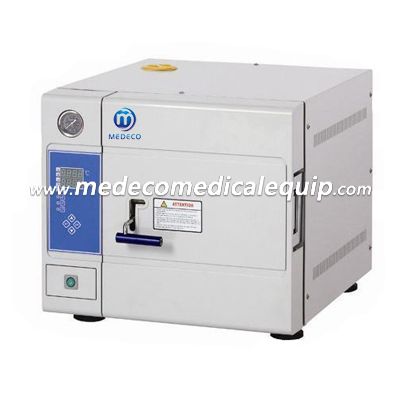

TABLE TOP STEAM STERILIZER ME-TM-XD20D/24D/35D/50D

Fully Automatic Microcomputer Type


Overview:

1.For 4~6 minutes rapidly sterilizing.

2.Digital display of working status,touch type key.

3.With 3 fixed cycles of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.

4.The whole process of water adding,temperature rising,sterilizing,drying steam discharging controlled automatically.

4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5.Exhaust the cool air automatically.

6.Safe protection of water lacking.

7.Door safety lock system.

8.With four stainless steel sterilizing plates.

9.The chamber of the sterilizer is made of stainless steel.

10.Automatically shut off with beep reminding after sterilization.

11.With drying function.


Use:

The sterilizer is a table type in safety and auto-controlled, which is designed for the unit of medical health, pharmacy, science and technology etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food and other goods.



MODEL   TECHNICAL DATA
ME-TM-XD20DME-TM-XD24DME-TM-XD35DME-TM-XD50D
Sterilizing chamber volume20L24L35L50L
(φ250×420 mm)(φ250×520 mm)(φ300×500 mm)(φ340×550 mm)
Working pressure                            0.22Mpa
Working temperature                            134℃
Adjustment  of                            105-134℃
temperature
Timer                           0-99 min
Heat average                           ≤ ± 1℃
Power1.5 KW / AC220V 50Hz2.7 KW / AC220V 50Hz
Sterilizing plate340×200×30 mm400×200×30 mm400×200×30 mm500×250×30 mm
 (3piece) (3piece) (4piece)(4piece)
Dimension480×480×380 mm580×480×384 mm730×550×510 mm770×600×540 mm
Package dimension700×580×500 mm800×580×500 mm810×680×650 mm880×730×700 mm
G. W/N.W43/40 kg50/45 kg90/73 kg105/86 kg
