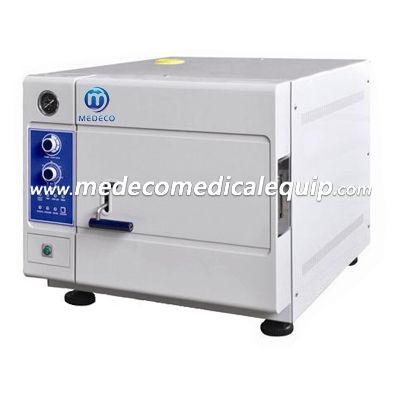

TABLE TOP STEAM STERILIZER ME-TM-XD20J/24J/35J/50J
Overview:
1.Indicator light indicates working state.
2.For 4~6 minutes rapidly sterilizing.
3.Sterilizing temperature and time can be preset.
4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.
5.Over temperature & over pressure auto-protection.
6.Safe protection of water lacking.
7.Exhaust the cool air automatically.
8.Door safety lock system.
9.With three stainless steel sterilizing plates.
10.The chamber of the sterilizer is made of stainless steel.
11.Automatically shut off with beep reminding after sterilization.
Use:
The sterilizer is a table type in safety and auto-controlled, which is designed for the unit of medical health, pharmacy, science and technology etc. And mostly suitable for sterilizing of surgical, dental and eye instruments, glassware medicine, culturemedium and biological dressing, food and other goods.
Parameter:
MODEL TECHNICAL DATA | ME-TM-XD20J | ME-TM-XD24J | ME-TM-XD35J | ME-TM-XD50J |
Sterilizing chamber volume | 20L | 24L | 35L | 50L |
(φ250×420 mm) | (φ250×520 mm) | (φ300×500 mm) | (φ340×550 mm) | |
Working pressure | 0.22Mpa | |||
Working temperature | 134℃ | |||
Adjustment of | 105-134℃ | |||
temperature | ||||
Timer | 0-60 min | |||
Heat average | ≤ ± 1℃ | |||
Power | 1.5 KW / AC220V 50Hz | 2.7 KW / AC220V 50Hz | ||
Sterilizing plate | 340×200×30 mm | 400×200×30 mm | 400×200×30 mm | 500×250×30 mm |
(3piece) | (3piece) | (4piece) | (4piece) | |
Dimension | 480×480×384 mm | 580×480×384 mm | 730×550×510 mm | 770×600×540 mm |
Package dimension | 700×580×500 mm | 800×580×500 mm | 820×680×650 mm | 880×730×700 mm |
G. W/N.W | 43/38 kg | 50/44 kg | 95/80 kg | 112/93 kg |
