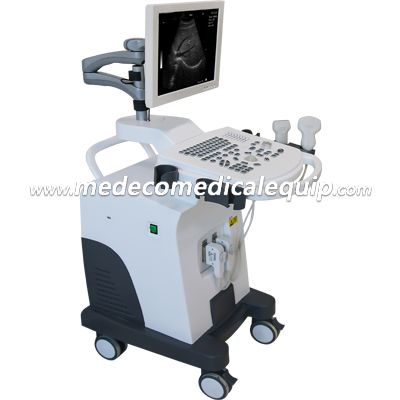

Full Digital Trolley Ultrasound Scanner ME-350

Full Digital Trolley Ultrasound Scanner ME-350

First-class digital imaging technology, more clearer image:

Full-digital beam imaging technology

Real-time dynamic receiving focus point by point

Real-time dynamic sound velocity changed

High-accuracy DSC Digital image formation technology

Intelligentized 8-segment TGC adjustment

Progressive SMT components technology to ensure machine reliability

USB port: storable and readable

THI and Histogram function

Support OB Report

Support: Chinese/English/Spanish/French/Portuguese/Russian/

Flexible and convenient operating system:

15 inch LED liquid crystal display, angle range is more flexible to adjust

Back-lit keyboard silicon gel,more comfortable and wearable,no trouble in using in the darkroom

Intelligentized menu,man-machine diaglogue is easy and quick

Puncture guide line can display under B mode, angle and position are adjustable

More magnification display, Disease diagnosis more accurate

USB storage is connected outside, more convenient to upload pictures

Large capacity of cine loop, image can display circularly and automatically

Basic Parameters:
Probe Depth: 16 levels
Probe Frequency: 5 levels

Main gain: 0-100%
8 TGC: adjustable
Focus: 4
Image storage: 4920 images

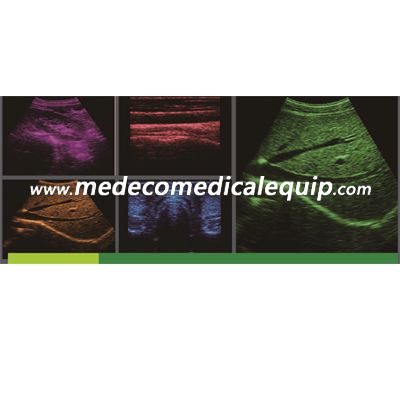

Pseudo color: 0-7
Scanning area(angle): 3 levels
Edge enhancement: 0-3
Linear correlation: 0-5
Gamma correction: 0-7
Frame correlation: 0-3
Dynamic range: 0-135
Cine loop: 512 frames
Body mark: 97 kinds
U Disk support: FAT32 format

Image reversal: up/down, left/right, black/white

Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement

OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI

OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve

Various Probes  (80 elements):
Convex probe (2.0 - 5MHz)
Linear probe (5.5 - 9.0MHz)
Trans-vaginal probe (5.0 - 8.5MHz)
Micro-convex probe (4.0 - 7.0MHz)
Probe frequency:

Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz

Depth: 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level 【35,42,49,62,69,76,83,90,97,104mm】
Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level 【62,69,76,83,90,97,104,111,125,139mm】
Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level 【62,69,83,97,111,125,139,152,166,180mm】
