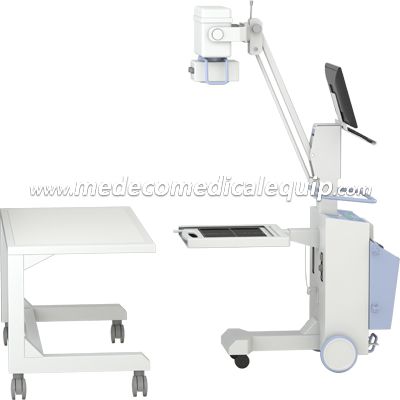

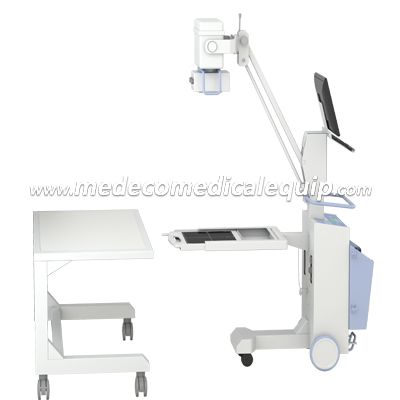

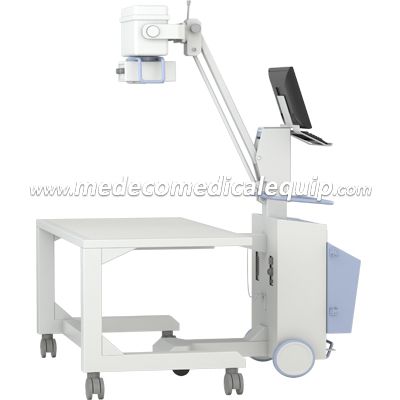

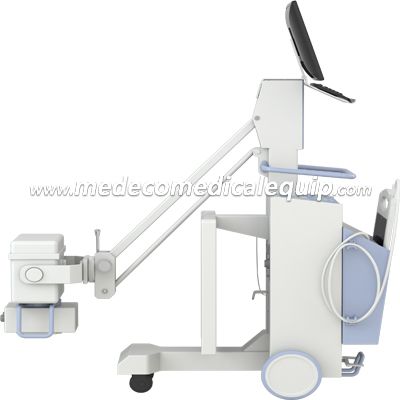

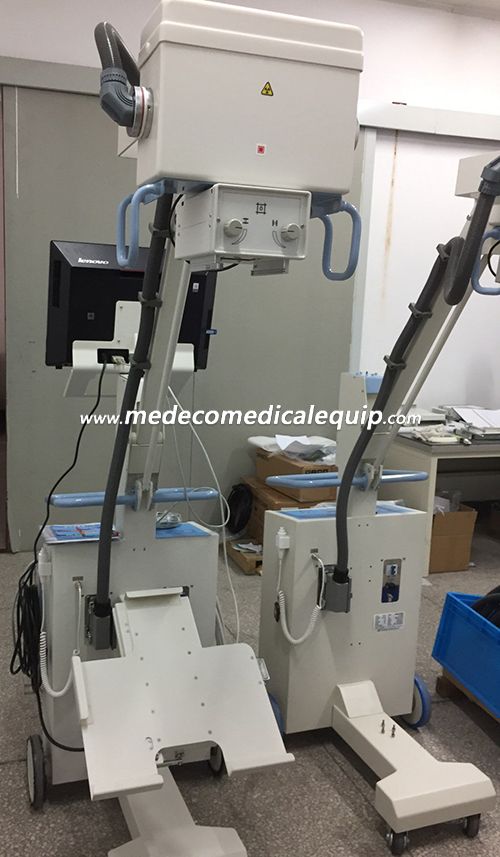

Vet Mobile Digital Radiography System MEVET1010 Series
Features:
1. 14*17'' or 17*17'' portable flat panel detector：fast imaging time, high efficiency, directly imaging in computer without film processing.
2.With kV, mAs two button adjustment, LCD 20 inches display, multifunction of safety guard.
3.50 setting parameter available for quick photography.
4.Support barcode scanning for inputting animals' info quickly.
| Model | ME101+DR | ME101A+DR | ME101C+DR |
| Output Power | 2.5KW | 3.5KW | 5KW |
| Inverter Frequency | 50KHZ | ||
| Tube Voltage | 40-100KV | 40-110KV | 40-120KV |
| Tube Current | 25mA-50mA | 20mA-63mA | 25mA-100mA |
| mAs | 1.0-160mAs(45steps) | 1.0-125mAs(43steps) | 1.0-180mAs(46steps) |
| Power Supply | 220V±10%,50HZ | ||
| Anode Type | Fixed Anode | ||
| Focus | 1.5mm | ||
| Anode Heat Capacity | 35KJ（47KHU） | ||
| Tube Heat Capacity | 460KJ（613KHU） | 500KJ（666KHU） | 500KJ（666KHU） |
| SID | 500mm-1750mm | ||
| Horizontal Axis Rotation | 180° | ||
| Vertical Axis Rotation | ‘-30 - +90° | ||
| Collimator Rotation | 180° | ||
| Pillar Rotation | -- | ||
| Supporting Arm | Two-arm Supporting | ||
| Power Supply Mode | Connect to power grid | ||
| Operating Mode | Wire/Wireless control | ||
| Operation Modes | Two-Button Type | ||
| Flat Panel Detector | Mobile Wire type | ||
| Scintillator | GOS | ||
| Detector size | 14*17''(17*17'' optional) | ||
| Pixel | 2.3K*2.8K | ||
| Distinguishability | 3.3lp/mm | ||
| A/D Converter | 14bits | ||
| Diagnosis table | Equip 4 casters with brakes | ||
| Table length | 1500+-50mm | ||
| Effective photography length | >=1200mm | ||
| Effective photography width | >=500mm | ||
| Table total height | <=800mm | ||
| Table height | 780+-10mm | ||
